DOF Craft 5X Disc Changer 10 - All-in-One Milling Machine
No Limitation and No Restriction
Built in PC
Built in Compressor
Built in Dust Extractor
Built in Water Pump
10 Discs for Non-Stop Milling
CRAFT 5X DC is equipped with complete automation system milling up to ten discs continuously.This automated milling work will increase technicians to perform without any limitation by the type of materials or the size of prostheses. Therefore, it dramatically increaseswork efficiency and cuts labor costs.
Vertical Disc Changer
The disc changer has been vertically designed to fully maximize the user’s convenience as well as making cleaning and replacing the discs simple.
Cleaning Technology for Perfect Performance
CRAFT 5X DC’s automated system foundation lies with its cleaning system. The perfect cleaning system is ensured using compressed air to remove dust and to set the disc in its exact position. With DOF’s original ultra-precision sensor technology, it ensures error-free milling and providing a powerful yet smooth milling performance.
Smart Milling, Ultra-Precision Sensor
CRAFT 5X DC is equipped with an ultra-precision sensor to ensure error-free milling. Each sensor works organically to control the smart milling performance of CRAFT 5X DC. The sensors allow for safe milling under any conditions by detecting the discs presence in the changer as well as the state of discs attachment.
Specifications
Dimensions
Machine
910mm x 670mm x 710mm (W x D x H)
Table
910mm x 670mm x 1000mm (W x D x H)
Weight
Machine
150kg
Table
80kg
Spindle
Manufacturer
Jäger
Shank
4ø
Maximum RPM
100,000 rpm
Maximum Power
0.7kw
Number of Disc Blank
10
Max. Thickness of Disc
30mm
Number of Tools Housed
21
Number of Pre-milled Simultaneous Milling
10
Number of Reverse Type Pre-milled Simultaneous Milling
6
Number of Glass Ceramic Simultaneous Milling
6
Number of Hybrid Ceramic Simultaneous Milling
12
Required Power
1.5kw
Material Compatibility
Zirconia, Wax, PMMA, PEEK, Composite Resin, Hybrid Ceramic
Glass Ceramic, Pre-Milled Titanium Abutment
Other Specifications are the same as Craft5X.
Click here to see more of DOF Craft 5X
5-AXIS Simultaneous Milling Machine90 Degree MillingOpen C-clap HolderX, Y and Z axis and A and B rotating axis can mill discs in 360 degrees in both clockwise and counterclockwise.
Wet & Dry Compatible MillingIt is available to choose a milling method for materials with wet and dry compatible milling.In addition, waterproof function prevents remaining humidity from permeating into milling area.
Sturdy & low-vibrationRegardless of its compact size, the internal structure of steel components deliver optimal milling speeds and durability.
Powerful MotorClosed Loop SystemIt is provided with a device that can remember numbers of a motor’s rotations that it prevents stepping out itself. Based on the stable motor, any materials can be milled.

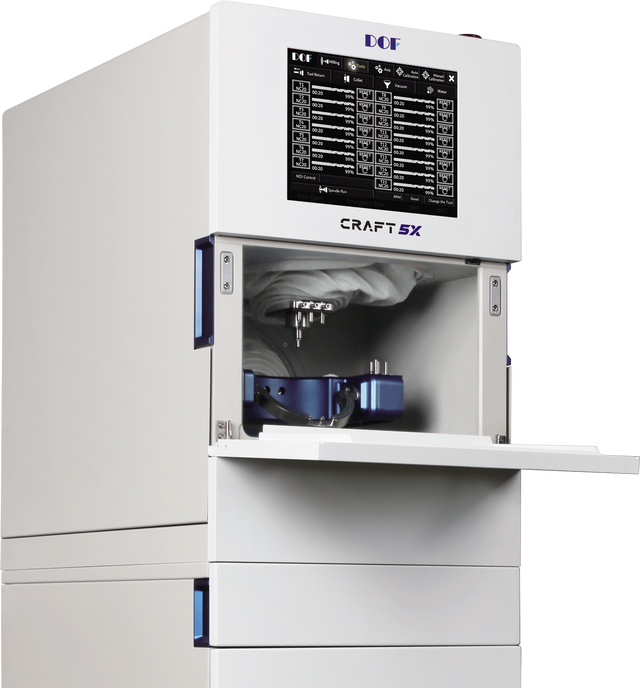

Onboard ComputerA touch screen and a built-in computer are equipped.The machine control software has an intuitive user interface that anyone can easily use.
High Quality SpindleDurable Jäger spindle, which features up to 100,000 RPM and maximum power of 700 W, can mill hard materials stably.
StorageThe table provides a storage that milling accessories can be neatly stored. SThe table provides a storage that milling accessories can be neatly stored. Separate storage is not necessary.
Automatic Tool Changer21 tools capacity for all materials - Titanium, Glass Block, Zirconia and others.Accuracy, Convenient, Use Monitoring will be guaranteed.
DOF Craft 5X - All-in-One Milling Machine
No Limitation and No Restriction
Built in PC
Built in Compressor
Built in Dust Extractor
Built in Water Pump
Click here to see more of DOF CRAFT 5X
5-AXIS Simultaneous Milling Machine90 Degree MillingOpen C-clap HolderX, Y and Z axis and A and B rotating axis can mill discs in 360 degrees in both clockwise and counterclockwise.
Wet & Dry Compatible MillingIt is available to choose a milling method for materials with wet and dry compatible milling.In addition, waterproof function prevents remaining humidity from permeating into milling area.
Sturdy & low-vibrationRegardless of its compact size, the internal structure of steel components deliver optimal milling speeds and durability.
Powerful MotorClosed Loop SystemIt is provided with a device that can remember numbers of a motor’s rotations that it prevents stepping out itself. Based on the stable motor, any materials can be milled.
Onboard ComputerA touch screen and a built-in computer are equipped.The machine control software has an intuitive user interface that anyone can easily use.
High Quality SpindleDurable Jäger spindle, which features up to 100,000 RPM and maximum power of 700 W, can mill hard materials stably.
StorageThe table provides a storage that milling accessories can be neatly stored. SThe table provides a storage that milling accessories can be neatly stored. Separate storage is not necessary.
Automatic Tool Changer21 tools capacity for all materials - Titanium, Glass Block, Zirconia and others.Accuracy, Convenient, Use Monitoring will be guaranteed.
***Launching Promotion***
AUD 49,999+GST including following items
All-in-One CRAFT DRY Milling Machine
All-in-One Dust Extractor (C-M100-G, valued at AUD 2,500+GST)Click here to see the product details
10 Discs x Everest Multilayer Zirconia (valued at AUD 2,500+GST)Click here to see the product details
3 Sets x Milling Bur (Total 9 Burs, valued at AUD 990+GST)
DOF CRAFT 5X DRY (All-in-One)
Spindle 800W
5 Axis with 90 Degree Milling
Snap in Jig Mounting
Automatic Tool Change (21 Tool Pockets)
Cabinet included
Built in Operation System, Compressor and Dust Extractor
5-AXIS Simultaneous Milling Machine
Zirconia, PMMA, Hybrid Ceramic
Crown, Bridge, Full Arch, Bite Splint, Denture, AoX Supra Structure
Dry Only MillingContinue the quality of CRAFT5X Hybrid
Sturdy & low-vibrationRegardless of its compact size, the internal structure of steel components deliver optimal milling speeds and durability.
Powerful MotorClosed Loop SystemIt is provided with a device that can remember numbers of a motor’s rotations that it prevents stepping out itself. Based on the stable motor, any materials can be milled.
Onboard ComputerA touch screen and a built-in computer are equipped.The machine control software has an intuitive user interface that anyone can easily use.
High Quality SpindleDurable spindle, which features up to 60,000 RPM and maximum power of 800 Watt, can mill hard materials stably.
StorageThe table provides a storage that milling accessories can be neatly stored. The table provides a storage that milling accessories can be neatly stored. Separate storage is not necessary.
Automatic Tool Changer21 tools capacity
Brochure Click here to see the brochure

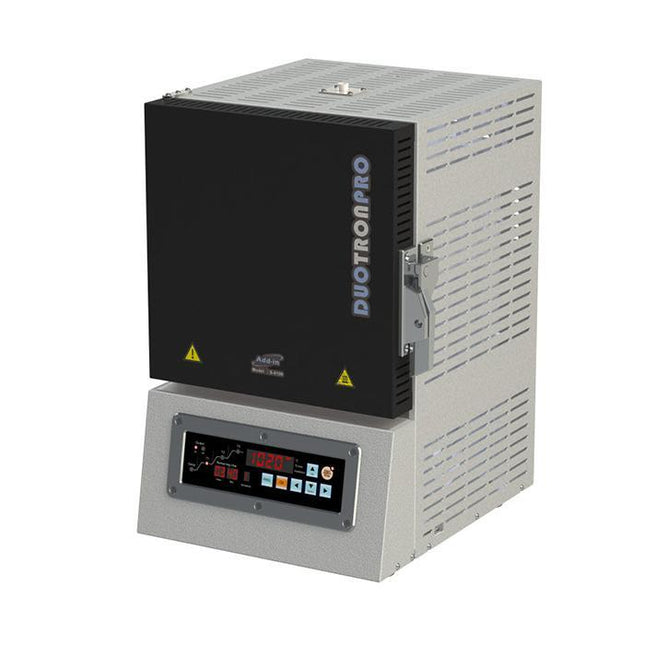

3 hour FAST Sintering Process
Stock 2 Trays (25 units per tray)
Heat up to 1,600 C
Low maintenance Cost
Compact Design - Roomy Interior Chamber: 110mm(W ) x 110(D) x 110(H) - Compact Size / W eight: 354mm(W ) x 391mm(D) x 527mm(H) / 35Kg
Mosi2 Heating Element - 1900C, Heating Element(Operating 1600C)
Programmable Schedules - Fully Programmable - Easy to Create Custom Cycles for Different Material Needs - 10 Different Schedules
(made in Korea)
Market Share No. 1 in Korea!
Everest Multilayer, composed four-layer structure, have high level colour matching with a VITA Classical Shade Guide.
For all cases single, bridges and full arches.
BL0 & BL3 + 16 Classic VITA Shades
45 - 48% Translucency
850 - 1150 Mpa Strength
UNC Zirconia / Furnace Brochure
Market Share No. 1 in Korea!
PT has strength for special cases, please call us before order to check stock availibility.
Everest Multilayer, composed four-layer structure, have high level colour matching with a VITA Classical Shade Guide.
BL0 & BL3 + 16 Classic VITA Shades
43 - 45% Translucency
1150 - 1250 Mpa Strength
UNC Zirconia / Furnace Brochure

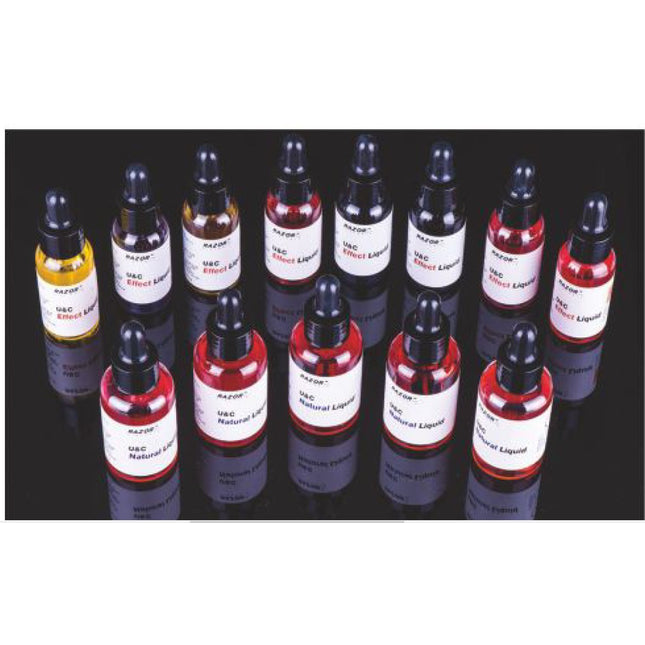

Everest Colouring Liquid is a universal colouring items that can be used in whole zirconia blocks as well as in Everest Zirconia Blocks of UNC
Especially, It it applicable to various clinical aesthetic cases using this product and it is very useful for making natural restorations of zirconia materials.
Opaque = Crown shade masking, apply inside of crown bottom
Pint = Gingiva shade masking
UNC Zirconia / Furnace Brochure
ZIR GUIDE ® - Classic VITA Shade & Bleaching Shade
The Reasons to Use ZIR GUIDE!
Hand Made from Real Zirconia Material
Constant and Exact Shade on Every Crowns
Minimize Any Re-Do Cases
No Hassle & No Messy with Colouring Liquid
Bleaching 1, Bleaching 3 Shaded Included
1. Shade taking with ZIR Guide2. Sintering zirconia without colouring with Everest Multilayer3. Check zirconia prosthetic shade that accurately matches the ZIR GUIDE!
UNC Zirconia / Furnace Brochure
Bio-fiber material
100% imitate natural gum shades
Effectively prolongs the denture durability
New technology also allows improvement on material bending, anti-impact and anti-fatigue performance
40 Minutes Sintering Zirconia Furnace
including cooling time
Programmable Schedules
Fully Programmable & Capable of Creating Custom Schedules for Different Material Needs
Available different schedules setting
MoSi2 Heating Element
1900°C, Heating Element
Two 95mm tray stackable (about 20crowns each tray)
Specifications
Power-AC 230V, 50/60Hz (10A)
Size (mm)-27cmx 33cm x 57cm(H) / 32kg
Sintering Schedules-100 Schedules
Chamber Size(mm)-10cm x 10cm x 8cm(H)
Max. Temp.(Accuracy)-1600℃ (±2℃)
Included with:
(Made in Korea)

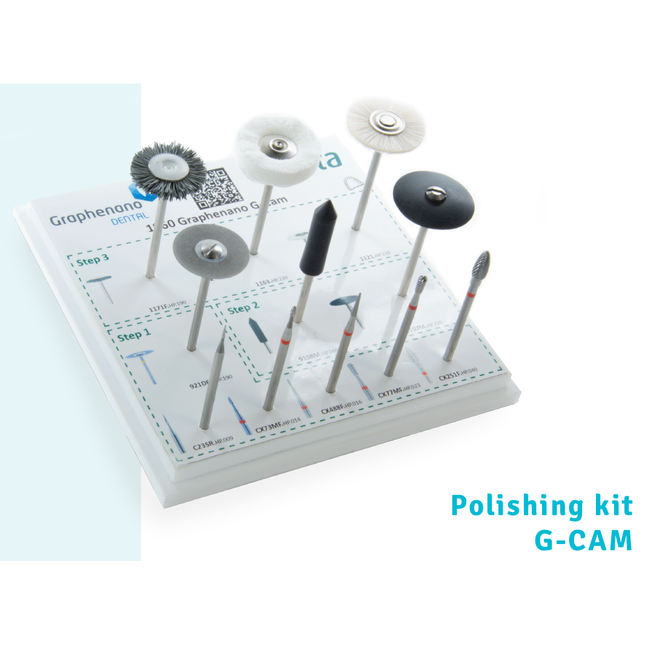

The G-CAM laboratory polishing kit for an optimum finish.It consists of three steps: grinding, polishing, and brightening.
Click the link below to download the documents.
-Brochure

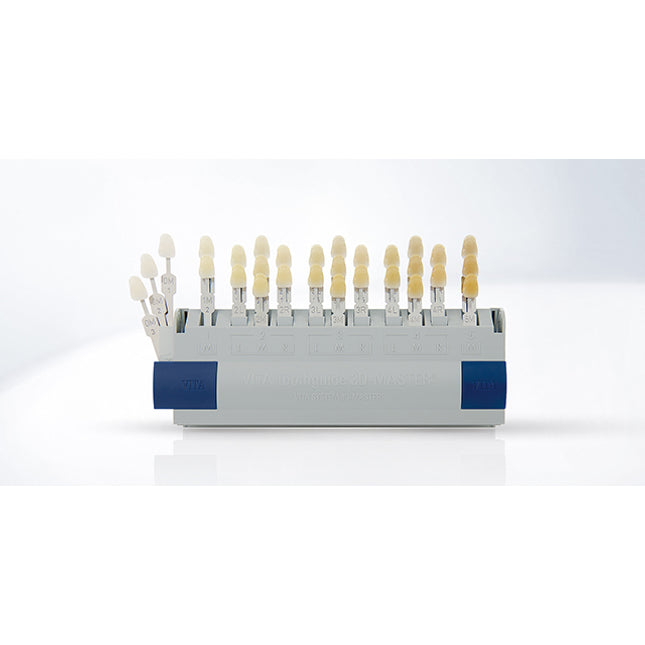

VITA 3D-MASTER® Shade Guide with Bleached Shades
VITA Toothguide 3D-MASTER®With the VITA Toothguide 3D-MASTER, all natural tooth shades can be determined accurately and systematically.
BLEACHED SHADE GUIDEThe VITA BLEACHED SHADE GUIDE enables the shades of bleached teeth to be determined accurately and systematically using the same principle as the VITA Toothguide.
Features/Benefits
Determination of the tooth shade in 3 steps
Unmistakable determination of the tooth shade
Possibilities of comparison: Yes/No - Better/Worse decision
Tooth shades precisely defined by science (miscible)
Can be learned
Additional information
Click here to see product details and download
When to change my VITA share guide? - Every 2 years!
*Two years survivability of VITA 3D master shade matching guides after disinfection with isopropyl alcohol: An in vitro study
- Code : B360

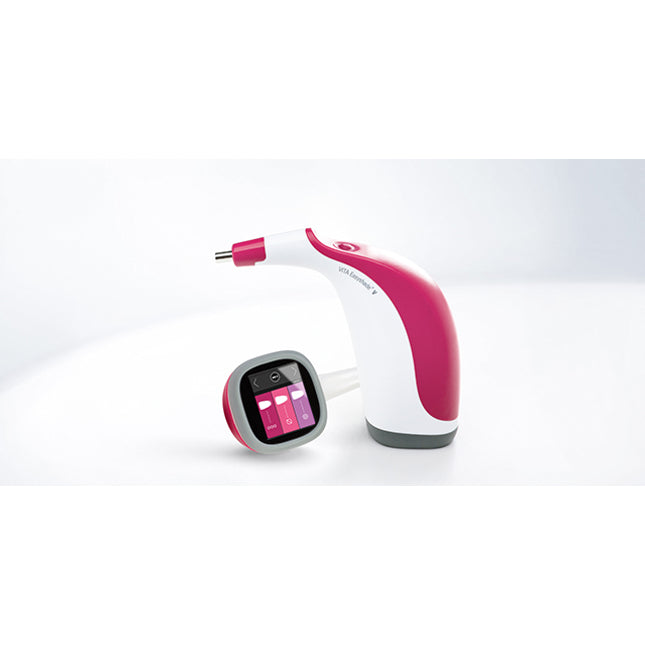

VITA Easyshade® V
The VITA Easyshade V digital spectrophotometer was developed for precise, fast and reliable shade determination of natural teeth and ceramic restorations.
Precise and reproducible tooth shade determination in seconds, thanks to the latest measuring technology
Objective and reliable measurements, due to the LED technology that is unaffected by ambient conditions
Reliable and economical, thanks to precise tooth shade information in the VITA shade standards for reliable shade reproduction and reduced shade corrections
Simple and intuitive, thanks to the easy-to-use touchscreen and software
Efficient, digital communication for exchanging information about tooth shade and images between the dental practice and the laboratory
Technical data
Spectrophotometer, measurement range 400 - 700 nm
Inductive charging concept with long-life AA batteries
Output of all tooth shades in the established standard shade systems VITA classical A1-D4 and VITA SYSTEM 3D-MASTER, as well as indication of the VITABLOCS shades and bleached index, in accordance with the American Dental Association
Display of lab and LCh values
Bluetooth interface for wireless communication with the VITA Assist PC software and VITA mobileAssist app
Additional information
Click here to see product information and download
When to change my VITA share guide? - Every 2 years!
*Two years survivability of VITA 3D master shade matching guides after disinfection with isopropyl alcohol: An in vitro study

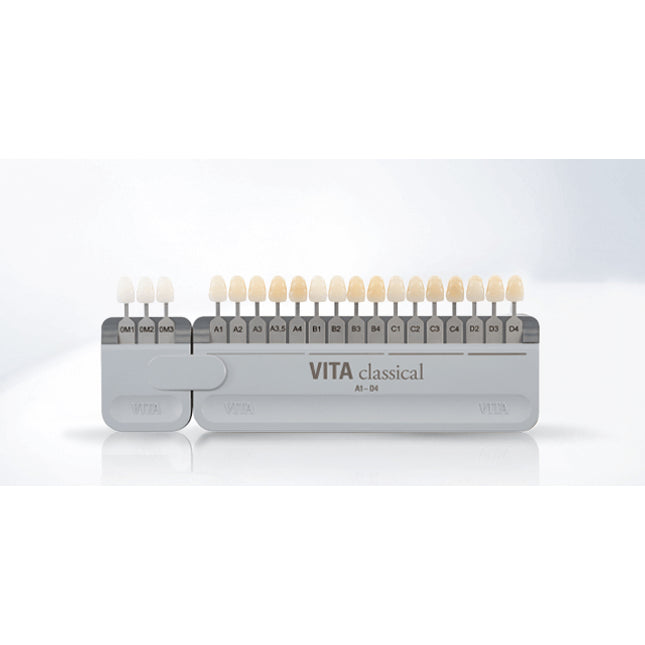

VITA Classical A1-D4 shade guide with Bleached Shades
VITA Bleached Shades offer the dentist a practical tool for the reliable determination and maintenance of a whitening regimen, and are now available for the VITA classical shade guide. With the additional VITA Bleached Shades, the tooth colours of bleached teeth are also displayed in the VITA classical shade guide.
The VITA Bleached Shades consist of the bleached shades 0M1, 0M2 and 0M3. These are taken from the VITA SYSTEM 3D-MASTER, and are also available as an add-on to the VITA classical A1 - D4 shade guide.
The VITA Bleached Shades add-on is also available as attachment for VITA classical A1-D4 and VITAPAN classical.
Dentists preferring to remain with the VITA 3D-Master shade system, which offers more precise and reproducible shade measurement, will continue to benefit from the VITA Bleachedguide 3D-Master, which is designed specifically for tracking a bleaching regimen.
Additional information
Click here to see product details and download
When to change my VITA share guide? - Every 2 years!
*Two years survivability of VITA 3D master shade matching guides after disinfection with isopropyl alcohol: An in vitro study
**Product Code : B027CV1
VITA VACUMAT® 6000M
The VITA VACUMAT 6000 M is a fully-automatic, microprocessor-controlled firing unit, ideal for all dental ceramic firing requirements. The furnace impresses with superb quality and esthetic, and offers outstanding firing results, user safety and convenience.
Features/Benefits
A firing muffle with maximum durability ("Made in Germany") and reliable electronics for consistently excellent firing results
Automatic prevention of condensation in the firing chamber (VITA AntiCon)
Automatic temperature adjustment to +/-1 °C every time a program is started (VITA AutoAdjust)
An automatic cleaning function (VITA SpecialClean)
Operate up to four furnaces using just a single VITA vPad excellence control unit
Use the VITA MultiPump to supply up to four furnaces with just a single vacuum pump – a simply unique system
Reduce your energy bills by up to 70 % with VITA Energy Efficiency
integrated working instructions
Automatic service cycle monitoring
Intelligent menu navigation
Technical data
Width: 230 mm
Depth: 330 mm
Height: 444 mm
Weight: 13 kg (painted)
Casing: painted anthracite finish
Chamber diameter : 90 mm
Chamber height: 50 mm
Firing temp.: max. 1200°C
Power supply: 230 volt AC, 50 Hz or 100/110 volt AC, 50/60 Hz
Power consumption: max. 1.5 kW
Classification: Protection class 1
In order to operate the furnace, you will need the VITA vPad excellence control unit.
Additional information
Click here to see product details and download
VITA VACUMAT® 6000MP
VITA VACUMAT 6000 MP is built to guarantee safe and reliable pressing results. This combipress unit combines all the advantages of a modern firing and press furnace with a compact design that sets new standards. VITA VACUMAT 6000 MP features all the programs and functions of VITA VACUMAT 6000 M.
Features/Benefits
A firing muffle with maximum durability ("Made in Germany") and reliable electronics for consistently excellent firing results
Automatic prevention of condensation in the firing chamber (VITA AntiCon)
Automatic temperature adjustment to +/-1 °C every time a program is started (VITA AutoAdjust)
An automatic cleaning function (VITA SpecialClean)
VITA CPress ceramic press technology developed by VITA that offers fault-free operation
Automatic press path monitoring as well as automatic detection by VITA PressControl of the pressing pellets used
Controlled fast cooling and energy-saving night mode (VITA Energy Efficiency)
Operate up to four furnaces using just a single VITA vPad control unit
Use the VITA MultiPump to supply up to four furnaces with just a single vacuum pump – a simply unique system, patented by VITA
Reduce your energy bills by up to 70 % with VITA Energy Efficiency
In order to operate the furnace, you will need the VITA vPad comfort or VITA vPad excellence control unit.
Accessories (can be purchased separately)
FDS program (Firing Data System) - PC software for the organisation and archiving of firing data
for the simultaneous operatoin with one control unit VITA vPad (as from the 2nd furnace), 1 switchbox (Art. no. D65000) is required. The switchbox is suitable for the simultaneous operation of up to 4 firing units.
Vacuum pump (230 V) in a sound-absorbing box
Colored side panel in six shades for the individualisation of the the VITA VACUMAT 6000 MP
VITA MultiPump to supply up to four furnaces with just a single vacuum pump
Number set (No. 1-4)
Technical data
Width: 230 mm
Depth: 325 mm
Height: 630 mm
Weight: 18.7 kg (painted)
Casing: painted anthracite finish
Chamber diameter : 90 mm
Chamber height: 55 mm
Firing temp.: max. 1200°C
Power supply: 230 volt AC, 50 Hz or 100/110 volt AC, 50/60 Hz
Power consumption: max. 1.5 kW
Classification: Protection class 1
In order to operate the furnace, you will need the VITA vPad excellence control unit.
Additional information
Click here to see product details and download
VITA ZYRCOMAT® 6100 MS (40 min Sinter)
VITA ZYRCOMAT 6100 MS delivers the quality and reliability that you have come to expect from VITA.
The sintering furnace offers a choice of three sintering modes: HighSpeed, conventional and user-defined, giving you flexibility at all times. Optimized for use with VITA materials, as well as with all commercially available ZrO2 and Al2O3 ceramic dental framework materials, this high-temperature sintering furnace sets the pace in terms of user orientation and ergonomics.
An LED light bar and freely-adjustable acoustic alerts, reliably provide information on firing progress even across longer distances. The ventilation system is cleverly designed so that rising heat is safely routed away from the electronics, ensuring long-term protection of the heating and electronic elements.
Features/Benefits
Homogenous distribution of heat inside the sintering chamber
Fully automatic calibration with guaranteed temperature accuracy (VITA Autoadjust)
An extended service life and long-term energy-saving operation (VITA Energy Efficiency)
Gentle sintering of all conventional materials such as white and highly-translucent industrially and manually pre-colored zirconia in all operating modes for consistent and convincing firing results
HighSpeed sintering under 60 minutes (VITA HighSpeed)
HighSpeed sintering of bridge frameworks with up to 14 units
Sintering of all ceramic dental framework materials based on ZrO2 and Al2O3
Gentle, stress-free sintering in all modes through controlled cooling to 400°C
Integrated low-temperature pre-drying (VITA PreDry) with a seamless transition to the sintering program
Optional modular system upgrades for greater flexibility and cost-effectiveness
Sintering up to 80 units stacked in two levels
Accessories (can be purchased separately):
FDS program (Firing Data System) - PC software for administrating and archiving firing data
1 Switchbox (Prod. No. D65000) is required for multiple-furnace control with one VITA vPad control unit. The switchbox is suitable for connecting up to 4 furnaces
Side panels in three different colors for customizing the VITA ZYRCOMAT 6100 MS
Set of numbers (No. 1-4)
Technical data
Width: 315 mm
Depth: 500 mm
Height: 470 mm
Weight: 27 kg (painted)
Casing: painted anthracite finish
Chamber diameter : 90 mm
Chamber height: 70 mm
Firing temp.: max. 1600°C
Power supply: 230 volt AC, 50 Hz
Power consumption: max. 1.5 kW
Classification: Protection class 1
In order to operate the furnace, you will need the VITA vPad excellence control unit.
Additional information
Click here to see product details and download

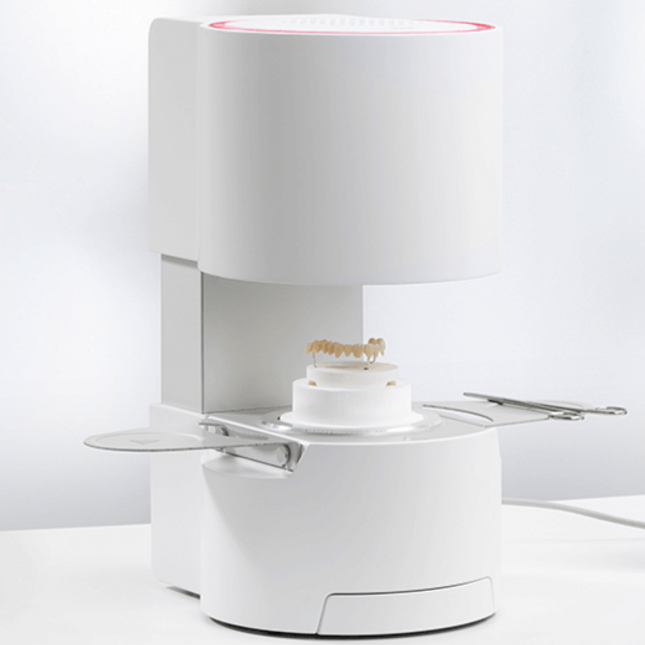

VITA SMART.FIRE®
VITA SMART.FIRE is a firing unit developed specifically for dental practices for the crystallization, glaze, stain, and corrective firing of all common chairside materials. Selecting the materials and starting the program are done in just one step. Optimally, customized material-specific programs are already pre-installed for simple firing. Thanks to its compact design, the firing unit can be set up easily and saves space in every practice.
Features/Benefits
Intuitive use - material selection and program start in one step
Organized menu navigation with self-explanatory program symbols
Pre-installed programs for all common chairside materials
Convenient use, thanks to its space-saving construction
Reliable function through long-lasting firing technology
Durable housing with sealed surfaces
Customization
Do you have an individual design request, or would you like to include your logo on the VITA SMART.FIRE?The customized option gives you the opportunity to create your own furnace.
Accessories
2x platinum pins
1x Firing pad round (Ø 44 mm)
1x firing trays
1x firing pliers
1x cooling table
Technical data
Width: 230 mm
Depth: 300 mm
Height: 340 mm
Weight: 13 kg
Casing: Polyurethan
Chamber diameter : 80 mm
Chamber height: 43 mm
Firing temp.: max. 1050°C
Power supply: 230 volt AC, 50 Hz or 100/110 volt AC, 50/60 H
Power consumption: 950 W (230 V), max. 1100 W (100 V, 110 V)
Classification: Protection Class 1
Additional information
Click here to see product details and download
VITA vPad Excellence
The VITA vPad excellence is a state-of-the-art control unit that complies with all the international safety standards.
Control unit for:
VITA VACUMAT 6000 M
VITA VACUMAT 6000 MP
VITA ZYRCOMAT 6000 MS
VITA ZYRCOMAT 6100 MS
Hardware:
Latest generation 10" touch display
SD card reader for transferring photos
Two USB ports for transferring data
Individually adjustable stand for optimal work with the device
2 GB of storage for customer data (firing programs, photos, PDF files)
Software:
Operation of multiple furnaces
Use a VITA vPad excellence and the VITA SWITCHBOX to operate up to four furnaces
Guided initial setup
When starting for the first time, you will be guided through the initial setup. Once complete, the VITA firing system is perfectly adapted to your needs (Product video see download area)
Profile management
Creation of up to 12 customized users
Every user can be assigned a name, icon and color
Customizable desktops
Creation of up to 50 customized desktops per user with firing programs, photos and PDFs
Every desktop can be assigned a name and a color
Firing programs
Pre-installed firing programs for VITA materials and the most common CAD/CAM materials
Integrated working instructions for all VITA materials
Create new firing programs or modify existing firing programs
Digital assistance function
If necessary, you can use the step-by-step instructions integrated in the software
This supports you with features such as video and photo tutorials
Saves all firing data for quality assurance
The temperature gradient in the firing chamber is logged every time firing is carried out
Logged data can be exported to a USB flash drive or forwarded online directly to the VITA service team
Data transfer
Profiles, firing programs and device data can be transferred to other VITA vPad comfort/excellence units or to a PC
Backup function for complete backup of all vPad data
Technical data
Width: 260 mm
Depth: 150 mm
Height: 200 mm
Weight: 1,6 kg
Casing: Plastic
Chamber diameter : 80 mm
Classification: Protection Class 1
Additional information
Click here to see product details and download
VITA ENAMIC® multiColor for CEREC/inLab, HT, EMC-14
VITA ENAMIC® multiColor delivers highly esthetic, long-lasting restorations with amazing shade accuracy in line with the proprietary VITA 3D-MASTER® shade system.
Six-layer shade gradient with smooth transition from cervical to incisal edge for natural play of light and lifelike vitality
Natural tooth characteristics with proven fracture resistance and bond reliability
Dual-network ceramic with unrivaled resiliency and force absorption for long-lasting results
Up to 50% faster chairtime with no post-firing required; simply mill, polish and place
Blocks (mm):
EMC-14 (12 x 14 x 18) 5pcs
Additional information
Click here to see product details and download

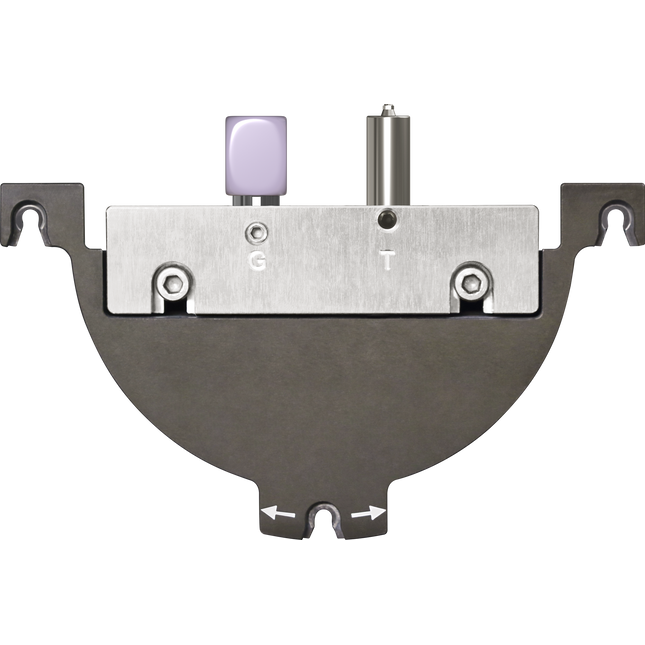

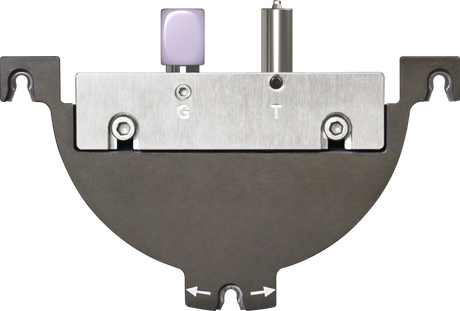

DOF's new GT jig allows CRAFT5X to mill glass ceramics and titanium abutment simultaneously.
※ GT Jig is accessory for CRAFT5X milling machine.
Find out more on :

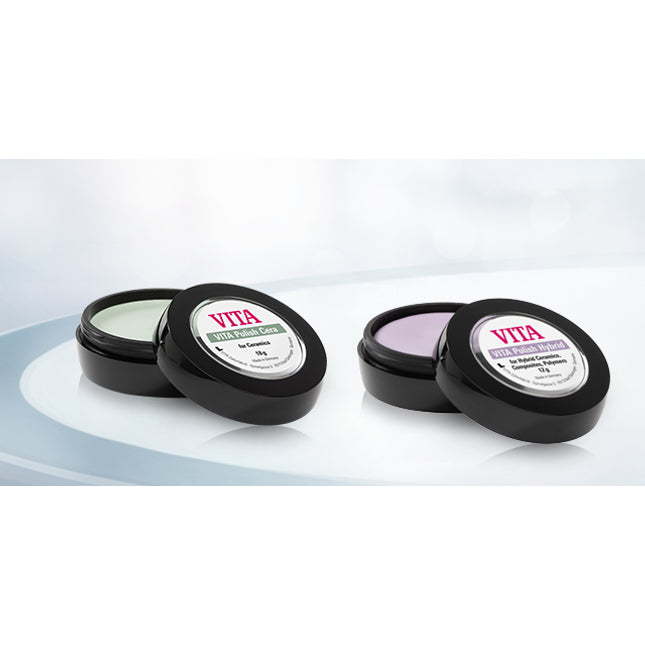

VITA Polishing Pastes
Diamond polishing pastes for extraoral high-gloss polishing of ceramic and polymer containing materials.
VITA Polish Hybrid is a diamond polishing paste for extraoral and final high-gloss polishing of restorations made of VITA ENAMIC hybrid ceramic, composite and polymer.
VITA Polish Cera is a diamond polishing paste for extraoral and final high-gloss polishing of restorations made of dental ceramic materials: feldspar ceramics, glass ceramics and zirconia ceramics.
Features/Benefits:
Both polishing pastes enable quick and reliable high-gloss results. At the same time, the surface texture is preserved.
The diamond particles are each specifically matched to the material classes. As a result, this improves the surface hardness and reduces the likelihood of plaque accumulation.
Additional information
Click here to see product details and download

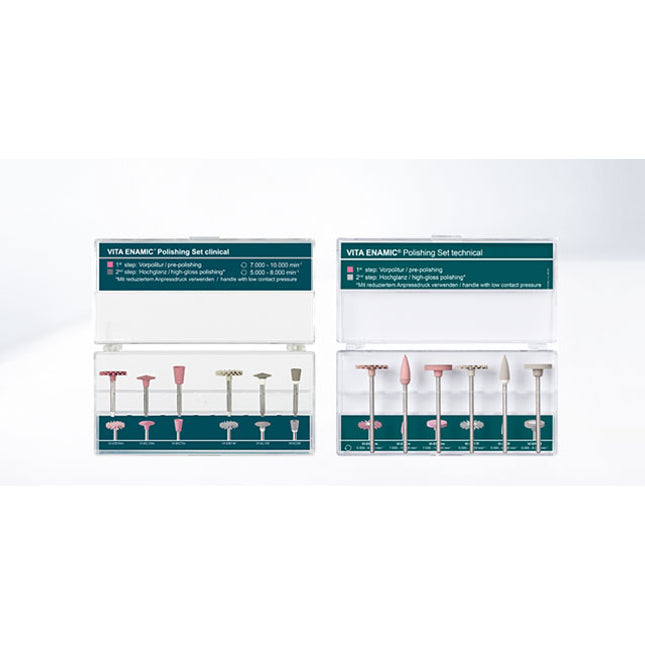

VITA ENAMIC Polishing Set
The VITA ENAMIC polishing sets were developed for reliable, efficient and material-specific surface treatment of hybrid ceramic restorations in dental practices and laboratories.These instruments are suitable for careful and gentle polishing of occlusal surfaces, cusps, fissures and contact points of the restoration and produce surfaces with exceptional gloss.
Excellent final results:High Gloss and plaque-resistant surfaces can be produced with these instruments. Precise concentricity, matched grit sizes and the individual geometries of the instruments guarantee results with superior precision.
Simple and safe handling:The instruments provide superior material removal performance. Good handling and the use without polishing paste enable simple and fast processing.
Gentle and careful processing:These instruments were developed specifically for the VITA ENAMIC to ensure gentle and careful polishing, reducing the risk of possible microcrack formation.
Including:
A total of 6 instruments for the contra-angle; 3 instruments for pre-polishing and 3 instruments for high-gloss polishing.
Additional information
Click here to see product details and download
**Product Code : EENPSETTV1

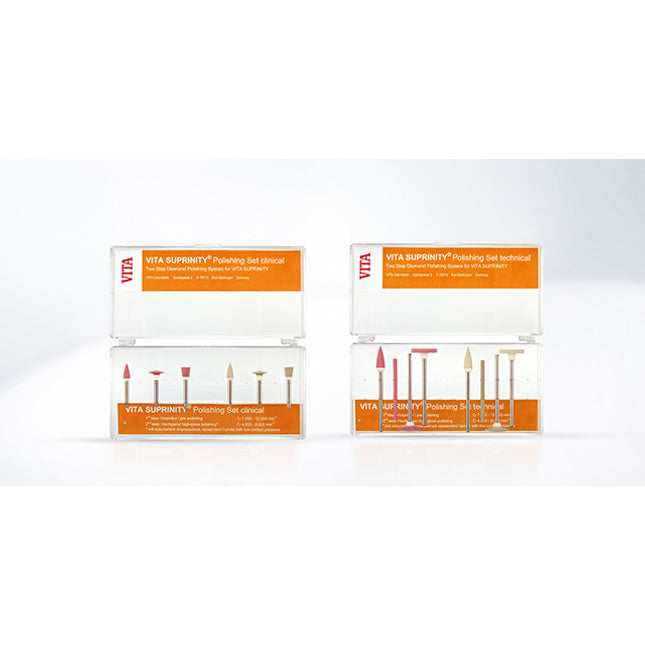

VITA SUPRINITY® Polishing Set
The VITA SUPRINITY Polishing Sets were developed for reliable, efficient and material-specific surface treatment of zirconia reinforced lithium silicate ceramic (ZLS) restorations in dental practices and laboratories. The sets include various polishing instruments for pre- and high-gloss polishing.
These instruments are suitable for careful and gentle polishing of occlusal surfaces, cusps, fissures and restoration contact points. They ensure a brilliant shine on the finished restoration.
Excellent final results:The instruments produce highly esthetic and plaque-resistant surfaces. Precise concentricity, matched grit sizes and the individual geometries of the instruments guarantee superior results.
Simple and safe handling:The instruments provide removal capacity that can be easily controlled with minimal wear. Good handling and the ability to use them without polishing paste enables simple and fast processing. Safe use is also guaranteed since the insturments can be sterilized.
Gentle and careful processing:These instruments, which were developed especially for VITA SUPRINITY PC, ensure gentle and careful processing. As a result, the risk of possible formation of microcracks is reduced.
Including:
A total of 8 instruments for the handpiece; 4 instruments for pre-polishing and 4 instruments for high-gloss polishing.
Additional information
Click here to see product details and download
VITA AKZENT® Plus MINI KIT
New areas of application call for new, versatile materials. With VITA AKZENT Plus stains, users can optimize the shade of all types of dental ceramic restorations simply and efficiently, regardless of the CTE of the restoration.
Kit contains
Quantity
Content
Material
5
3 g
VITA AKZENT Plus EFFECT STAINS ES01, ES05 - ES06, ES11, ES13
1
5 g
VITA AKZENT Plus GLAZE LT POWDER
1
20 ml
VITA AKZENT Plus POWDER FLUID
1
VITA AKZENT Plus Shade sample disc
1
VITA AKZENT Plus mixing plate, crystal glass (70 x 95 mm)
1
Paint brush no. 3/0 synthetic
Additional information
Click here to see product details and download
VITA V60 i-Line® Plus
A classic among ceramic furnaces
With firing temperatures of up to 1200 °C, the VITA V60 i-Line PLUS is suitable for the firing of ceramic, stains, corrections and glaze firings, as well as crystallization firings with and without vacuum.Thanks to the preprogrammed firing programs, which are optimally adapted to VITA ceramic materials, the VITA V60 i-Line PLUS offers efficient processing and esthetically pleasing results.
The VITA V60 i-Line PLUS focuses on two central aspects: outstanding firing results over a long period of time and intuitive user-friendliness. In its timeless design, the new furnace combines proven quality and modern technology at an attractive price.
Features/Benefits
Uniquely user-friendly operation thanks to the touch display and intuitive menu navigation combined with a minimalist design
Set up & and get started: no complicated assembly process – simply connect, switch on and start working!
Made in Germany: with superior engineering skill and outstanding quality.
VITA quality: the finest grade materials and components are used with just one goal: reliability that makes no compromises.
Easy servicing: modular structure, easy access to all wear parts as well as neat arrangement of parts that is unrivalled make servicing easier as well as reducing costs.
High-performance technology: a real workhorse. Extremely robust, with integrated protection against current fluctuations as well as a particularly long-lasting VITA quartz muffle.
Focus on the essentials: a definitive, proven furnace concept that deliberately leaves out expensive additional features. This device concentrates on delivering its core functionality, in absolutely reliable fashion.
Technical functions
Maximum temperature accuracy (plus / minus 2 °C) for optimum firing results
Convenient operation that saves you time, modest space requirements
2 firing object storage trays at the side
Firing chamber fitted with high quality insulation material
Quartz firing muffle
Temperature sensor (platinum / rhodium-platinum)
Automatic temperature calibration
Technical Data
Width 260 mm
Depth 420 mm
Height 570 mm
Weight 18 kg
Housing Sheet steel, powder coated
Firing chamber diameter 90 mm
Firing chamber height 55 mm
Maximum firing temperature Max. 1200°C
Power supply 230 Volt, 50 Hz or 100/110 volts, 50/60Hz
Maximum energy usage Max. 1,5 kW
Classification Safety Class 1
Display 7 Inch
Accessories (Optional, can be purchased separately):
Vacuum pump: 230 / 240 V, 50 / 60 Hz, 115 V, 50 / 60 Hz or 100 V, 50 / 60 Hz.
VITA V60 i-Line TOOLBOX (DTOOL)
Additional information
Click here to see product details and download
VITA AKZENT® LC STANDARD KIT
VITA AKZENT LC is a light-curing stain and glaze system used for characterizing all indirect restorations made of composite, polymer and hybrid ceramic.
Features/Benefits
Reliable reproduction of all the shade facets of natural dentition, thanks to a wide range of brilliant effect stains
Simple realization of shade modifications with a brush stroke, using chroma shades for plannable, systematic control of the chromaticity of dental restorations
Apply individual shade effects with pinpoint accuracy and apply shades highly efficiently over a large area, thanks to effect and chroma stains with ideally matched viscosities
Produce restorations with consistently brilliant shade rendering and high gloss stability, thanks to stains with good wear and discoloration resistance
Q'ty
Content
Material
6
2.5ml
VITA AKZENT LC EFFECT STAINS white, orange, russet, khaki, blue, grey-blue
1
5ml
VITA AKZENT LC GLAZE
1
25ml
VITA AKZENT LC CLEANER
1
VITA Mixing palette white porcelain with lid, 5,5 x 3,5 cm
1
25pcs
VITA ADIVA Microbrush
1
Brush No. 1 correction brush, red marten
1
Flat brush for CHROMA STAINS
Additional information
Click here to see product details and download
Related video, VITA AKZENT LC Gingival Characterization Techniques
Market Share No. 1 in Korea!
EVEREST MULTILAYER UVS
EVEREST Multilayer Universal Speed (UVS) combines our latest multilayer Zirconia technology to create a strong but transparent material with no compromise to shade stability in both speed and normal sintering. Suitable for single crowns and full arches, no variation in translucency or strength.
Super Fast Sinter
40 minutes
Single crown
Normal Sinter
4 hours
From single to full arch
Translucency and Strength
45 - 48% Translucency
900 - 1150 Mpa Strength

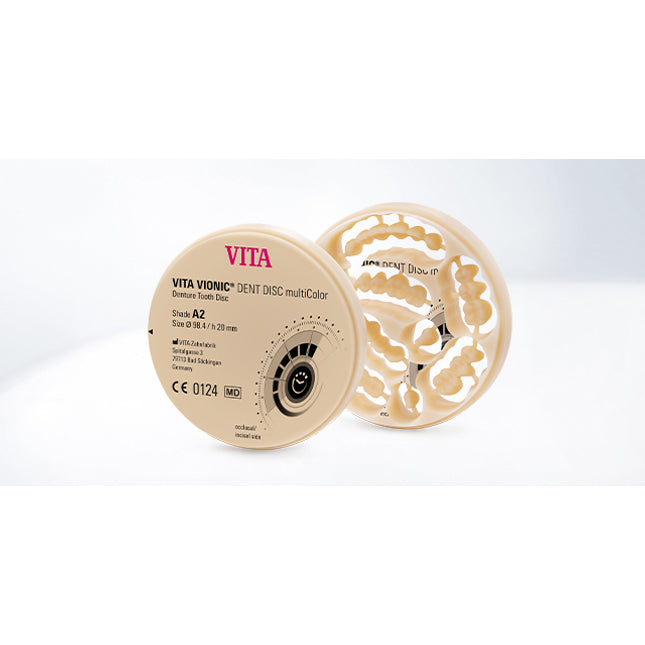

VITA VIONIC® DENT DISC multiColor
Composite disc for milling tooth elements for final full and partial denturesSame characteristic as VITA
Product information
Elevate your digital quality to the next level with VITA VIONIC DENT DISC multiColor. Open system that can be used flexibly for full and partial dentures.
Features/Benefits
Resistant to abrasion and durable
Simple to process, easy to polish
Integrated shade gradient with Perfect Match to the VITA shade standard
Indications
VITA VIONIC DENT DISC multiColor are composite discs for milling tooth elements for full and partial dentures.
Product specifications
Shades
VITA classical A1–D4®-/Bleach shades: 0 M1, A1, A2, A3, A3,5, B3, D3
Geometry
Pack contains one piece
Ø 98.4 x h 20 mm
VITA VIONIC® DENT DISC multiColor products
Description
Prod. no.
VITA VIONIC® DENT DISC multiColor, A1, Ø 98.4 x h 20 mm, 1 pc.
ADA19820
VITA VIONIC® DENT DISC multiColor, A2, Ø 98.4 x h 20 mm, 1 pc.
ADA29820
VITA VIONIC® DENT DISC multiColor, A3, Ø 98.4 x h 20 mm, 1 pc.
ADA39820
VITA VIONIC® DENT DISC multiColor, 0M1, Ø 98.4 x h 20 mm, 1 pc.
AD0M19820
922-13000 VITA VIONIC DENT DISC multiColor (Version 005)
Click here to see the instruction for use
Click here to visit VITA website to see details.
*Please do not purchase this product, this product is not for sale.
*In order to submit your case, please click the link - https://www.the-ccc.com.au/pages/order

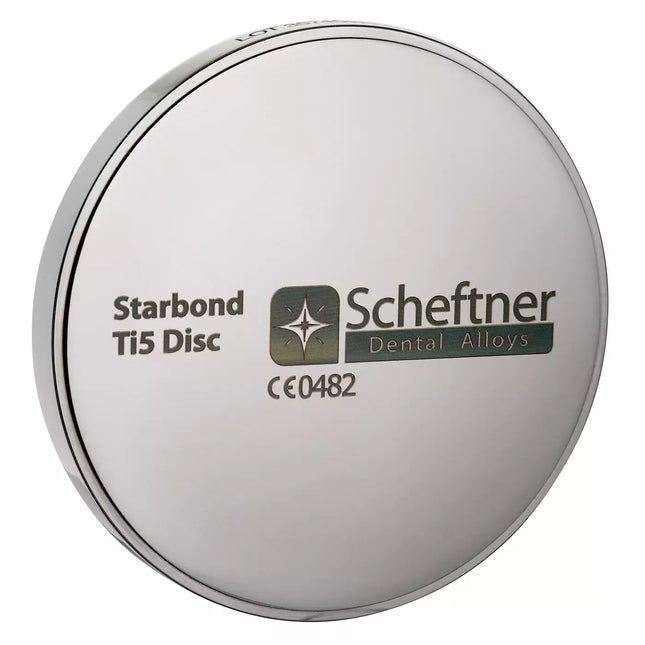

Scheftner Starbond Ti5 Disc
Milling disc made of grade 5 "ELI" (Extra Low Interstitial) titanium alloy.For the fabrication of implant-supported dentures, superstructures, bars and abutments. Medical device Class IIa.
Advantages for users:
Ideal mechanical properties
Excellent bonding with ceramics for titanium
Biocompatible
Extremely corrosion resistant
Particularly patient friendly due to low thermal conductivity
Perfect suitable for implant-supported restorations, superstructures and bars
Composition in percent by mass:
Ti
89.4%
Al
6.2%
V
4%
N,C,H,Fe,O
<0.4%
Technical properties:
Proof stress (Rp 0.2)
837MPa
Ultimate tensile strength
921MPa
Elongation
15%
Vickers hardness
330HV5/30
Density
4.4g/cm³
Melting point
1650°C
CTE (20-600°C)
10.3 x 10⁻⁶K⁻¹
Type (DIN EN ISO 22674)
4
Product Specifications
High Accuracy Guaranteed (± 5μm)
High Quality Material- Titanium Grade 5 (Carpenter Technology, US)- Ti6Al-4V ELI(ASTM F136)
Two Screws Included - One for lab work, another one for patients
*Please note that we use premilled cylinder blank, they are not affiliated to the implant manufacturers.

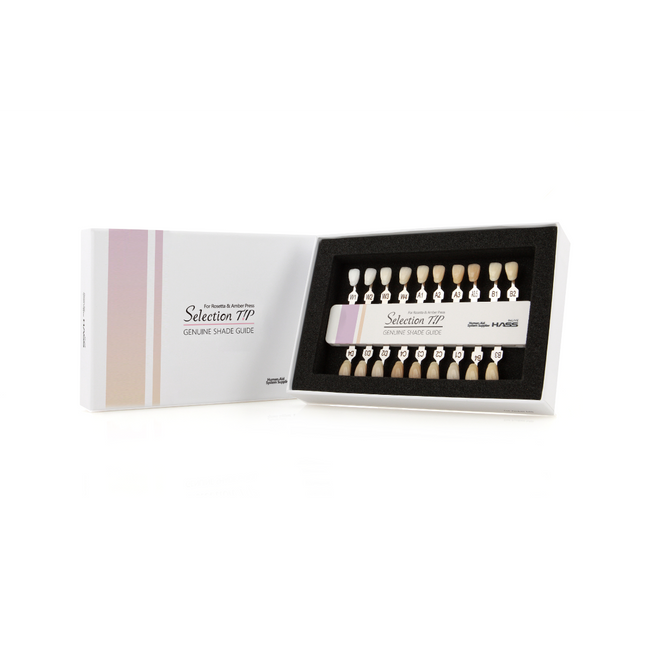

Selection Tip is a shade matching solution, optimized for the HASS Product.
Since the selection tip is made with a triple structure, it expresses the translucency pretty well.
Match up the accurate shade with Selection Tip, you will see better outcomes.
It's based on Rosetta "LT" and Amber press only.
