DOF Freedom AIR - IOS with Photogrammetry

    Description

    DOF Freedom Air

    Beyond Scanning : Specialized for All-on-X

    Precision Meets Innovation

    A Game Changer : Beyond Scan

    PIM (Precise Implant Measurement), developed with DOF’s proprietary technology, uses a dedicated PIM guide with an extended lighting lens. Designed to expand the scanning area and capture multiple scan bodies outside the mouth simultaneously. By scanning a wide area at once and recognizing scan body positions without stitching, it provides precise implant positioning. DOF’s high-precision scanning solution optimized for All-on-X cases.


    Scan Method  Photogrammetry-based scanning
    Scan Area  Scans a wide area in a single shot
    Scan Body Recognition  Acquires location information by recognizing dedicated patterns
    Accuracy Result  Provides high scanning precision


    Procedure



    Large Scan Area

    With a wide scanning area of 18.5 * 15mm and a deep depth of field of 25mm, it enables fast and precise acquisition of data.

    Voice Memo

    Memos can be recorded using the voice recognition feature, with automatic summaries provided by AI

    LED Light

    The scanner's status and cable connection can be intuitively checked through the LED light indicator

    DOF SYNC

    DOF SYNC: Designed for user convenience, DOF SYNC enables the fast and seamless transmission of scan data to partners

    Lightweight

    It weighs only 145g, making it the lightest intraoral scanner currently available on the market. Additionally, it significantly reduces wrist fatigue during scanning, enhancing user comfort

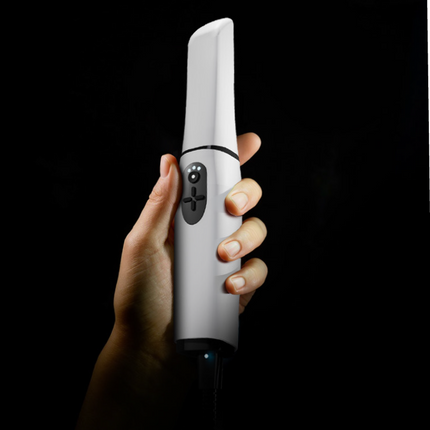

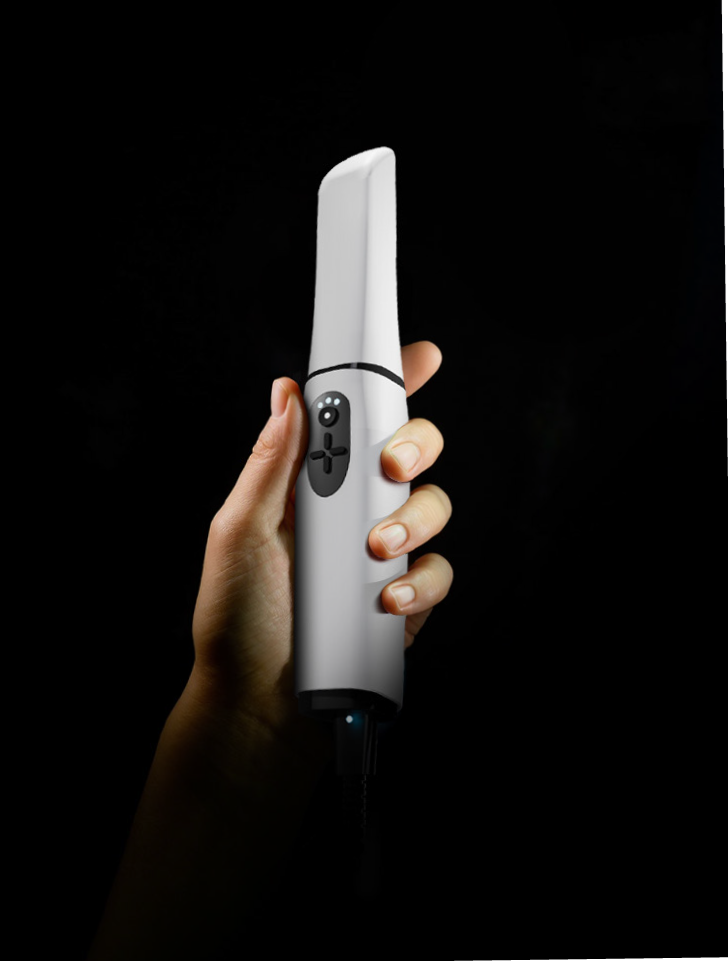

    D-PAD Control

    The scanner is equipped with a D-pad Control, Enabling fast and hygienic operation

    30mm Deep scan depth Accurate occlusion scan Smart scan filter

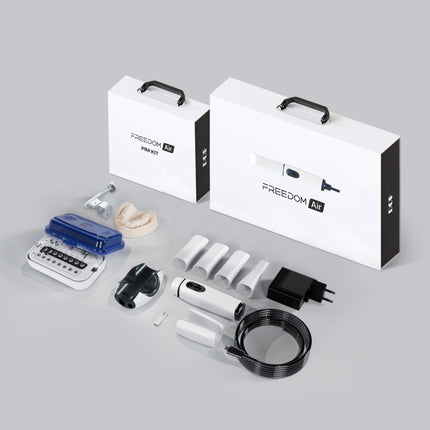

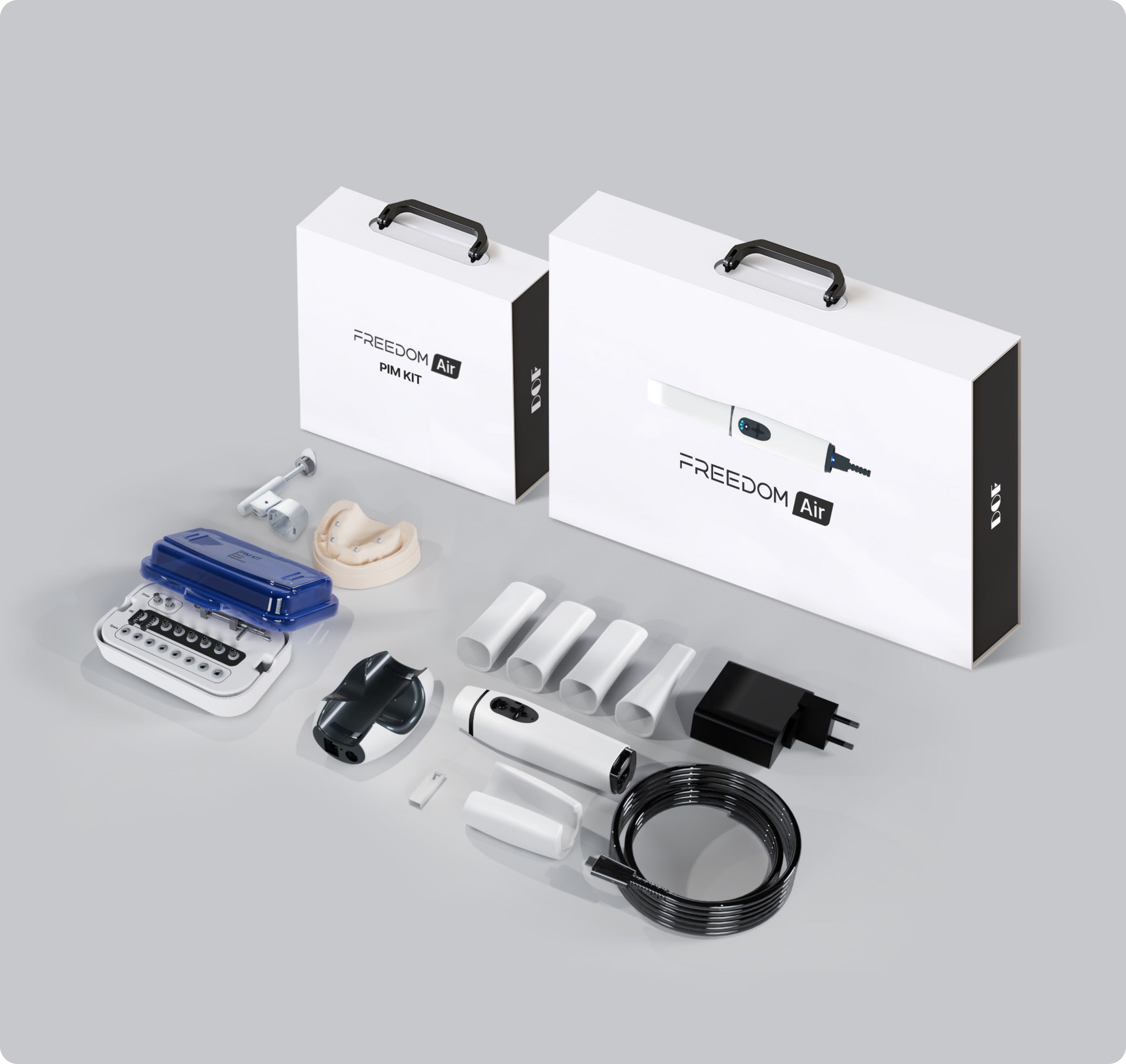

    Components

    Product components

    1. FREEDOM Air
    2. Normal Tip
    3. Small Tip
    4. Table Holder
    5. Wall Holder
    6. Cleaning Cotton
    7. Thumb Drive
    8. C to Cable
    9. A to B Cable

    PIM KIT components

    1. PIM KIT
    2. PIM Guide Tool
    3. All-on-X Practice Model

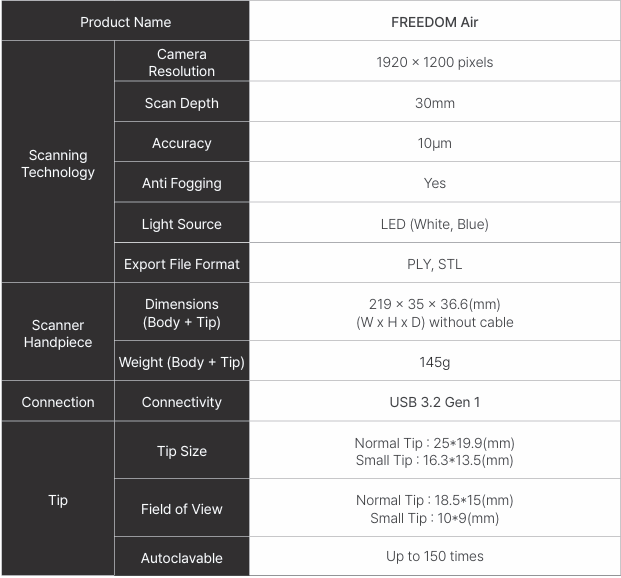

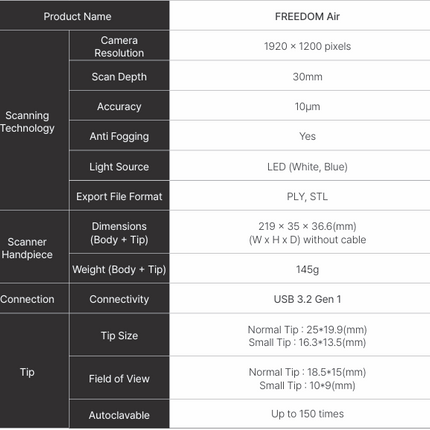

    Technical specifications

    Scanning technology
    Camera resolution 1920 × 1200 pixels
    Scan depth 30mm
    Accuracy 10µm
    Anti-fog Yes
    Light Source LED (White, Blue)
    Export file format PLY, STL
    edit
    Scanner handpiece
    Size (handpiece + tip) 219 × 35 × 36.6(mm)
    (W × H × D) without cable
    Weight (handpiece + tip) 145g
    edit
    Connection method
    Connectivity USB 3.2 Gen 1
    edit
    Tip
    Tip size Normal Tip : 25×19.9(mm)
    Small Tip : 16.3×13.5(mm)
    Viewing angle Normal Tip : 18.5×15(mm)
    Small Tip : 10×9(mm)
    Sterilization availability Can be sterilized up to 150 times

    DOF Freedom AIR - IOS with Photogrammetry

      Product form

      DOF Freedom Air  Beyond Scanning : Specialized for All-on-X Precision Meets Innovation A Game Changer : Beyond Scan PIM (Precise...

      $25,000.00 Incl. GST

        Description

        DOF Freedom Air

        Beyond Scanning : Specialized for All-on-X

        Precision Meets Innovation

        A Game Changer : Beyond Scan

        PIM (Precise Implant Measurement), developed with DOF’s proprietary technology, uses a dedicated PIM guide with an extended lighting lens. Designed to expand the scanning area and capture multiple scan bodies outside the mouth simultaneously. By scanning a wide area at once and recognizing scan body positions without stitching, it provides precise implant positioning. DOF’s high-precision scanning solution optimized for All-on-X cases.


        Scan Method  Photogrammetry-based scanning
        Scan Area  Scans a wide area in a single shot
        Scan Body Recognition  Acquires location information by recognizing dedicated patterns
        Accuracy Result  Provides high scanning precision


        Procedure



        Large Scan Area

        With a wide scanning area of 18.5 * 15mm and a deep depth of field of 25mm, it enables fast and precise acquisition of data.

        Voice Memo

        Memos can be recorded using the voice recognition feature, with automatic summaries provided by AI

        LED Light

        The scanner's status and cable connection can be intuitively checked through the LED light indicator

        DOF SYNC

        DOF SYNC: Designed for user convenience, DOF SYNC enables the fast and seamless transmission of scan data to partners

        Lightweight

        It weighs only 145g, making it the lightest intraoral scanner currently available on the market. Additionally, it significantly reduces wrist fatigue during scanning, enhancing user comfort

        D-PAD Control

        The scanner is equipped with a D-pad Control, Enabling fast and hygienic operation

        30mm Deep scan depth Accurate occlusion scan Smart scan filter


        Components

        Product components

        1. FREEDOM Air
        2. Normal Tip
        3. Small Tip
        4. Table Holder
        5. Wall Holder
        6. Cleaning Cotton
        7. Thumb Drive
        8. C to Cable
        9. A to B Cable

        PIM KIT components

        1. PIM KIT
        2. PIM Guide Tool
        3. All-on-X Practice Model

        Technical specifications

        Scanning technology
        Camera resolution 1920 × 1200 pixels
        Scan depth 30mm
        Accuracy 10µm
        Anti-fog Yes
        Light Source LED (White, Blue)
        Export file format PLY, STL
        edit
        Scanner handpiece
        Size (handpiece + tip) 219 × 35 × 36.6(mm)
        (W × H × D) without cable
        Weight (handpiece + tip) 145g
        edit
        Connection method
        Connectivity USB 3.2 Gen 1
        edit
        Tip
        Tip size Normal Tip : 25×19.9(mm)
        Small Tip : 16.3×13.5(mm)
        Viewing angle Normal Tip : 18.5×15(mm)
        Small Tip : 10×9(mm)
        Sterilization availability Can be sterilized up to 150 times
