- Perfect Option to save antagonist natural dentition
- Shock Absorption Material on All-on-X
- 'Mill & Issue' Product
- Polishing or Curing Post Process

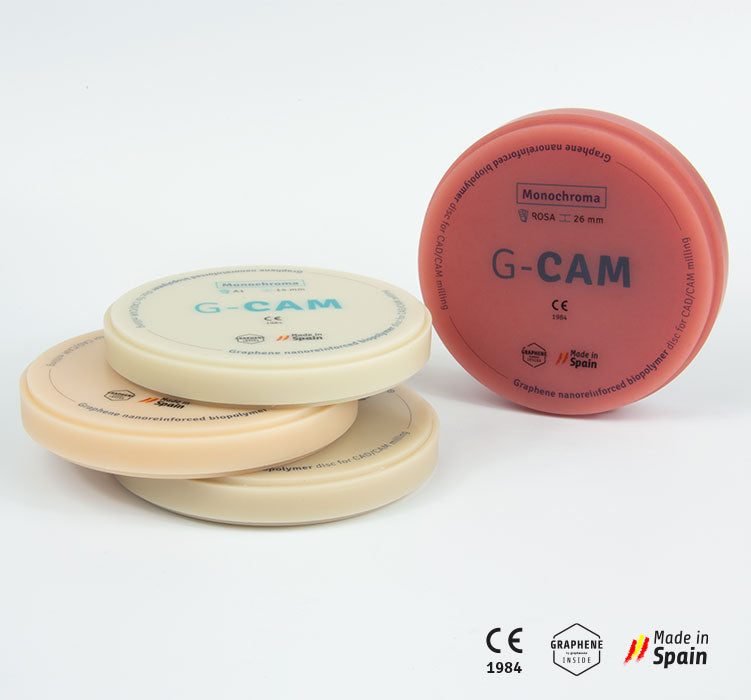

The biopolymer discs nanoreinforced with G-CAM graphene feature an increase in flexibility and superficial hardness. Their specific weight is the same as natural dentition. They allow for an even distribution of the chewing load and the absorption of external occlusal loads.

Specific material for final dental prothesis. Available in a wide chromatic range, according to the VITA Classical guide (9 colours).

*The colour samples may differ from the actual product.

**Special thickness up to 30 mm are available upon request.

TECHNICAL CHARACTERISTICS

Elastic modulus: 3200 ± 7% MPa
Bending strength: 140 ± 7% MPa
Surface hardness: 88 Shore
Water absorption: 4 μg/mm3
Residual monomer: <0,004 %

PACKAGING DIMENSIONS

11 x 10.5 x 4.5 cm

AVAILABLE FORMATS

Multichroma

AVAILABLE THICKNESS

from 14 mm

AVAILABLE DIAMETERS

98.5 mm

COLORIMETRY

The colorimetry, based on the VITA Classical guide, is not only limited to intermediate colours but also allows for more colours to be obtained using light-curing surface makeup in laboratories.

RESEARCH DATA / CLINICAL ARTICLE AVAILABLE / DESIGN PARAMETERS

Please click here to see the cementation guide.

Please click here to download the G-CAM data pack.

Please click here to download the G-CAM brochure.

Please click here to see the design/milling guidelines.
