*Due to the high demand, all stock is gone. It will take 10 business days to be in stock.
Dust Collector & Grinding box for CAM systems
Dust collector & grinding box for post-processing of dental prosthetics.Compact size and various options available for any working environment.
Specification- Dimensions : 290mm x 290mm x 350mm(W x D x H)- Body material : plastic- In put power : (220V, 4A, 50/60Hz), (110V, 6.5A, 50/60Hz)- Max vacuum dgree : 20kpa / Max air flow : 1.30m3/min- 1st filter : medium filter 5~25㎛- 2nd filter : super bio filter (HEPA) 0.3㎛- Suction control : Touch panel- Grinding box: Silicone hand wrap / LED light : 5V / 2.5A- Micro motor : 0~35,000rpm / Hand & foot speed control system / FWD, REV function / Handpiece holder- Handpiece: Saeshin H350 (made in Korea) up to 40,000RPM with 3Ncm torque
Bundle includes
- Dust extractor, grinding box with LED light, straight handpiece and foot pedal including armrests
Optional Accessory
- Flexible hose
*The advertised photos taken from our office.
The G-CAM laboratory polishing kit for an optimum finish.It consists of three steps: grinding, polishing, and brightening.
Click the link below to download the documents.
-Brochure
Optional Part for Desktop Dust Collector
Grinding box with LED Light (5V/2.5W) with Connecting Hose
Please note that a dust extractor in the photo is not included for reference only.
This product is only for the grinding box.
Airgun and handpiece holders inside of the box
Glass cover with armrests
Size: 542 X 500 X 336mm
Without connecting hose
This model has a flexible hose (Length 700mm) with LED light.
Dust Collector for CAM systems
Control the suction through the touch pad. Suction operation by receiving signals from various CAM equipment.The status of this device is output as a contact signal.The suction performance is fixed and cannot be changed.
Specification- Dimensions : 280mm x 280mm x 126mm(W x D x H)- Body material : plastic- In put power : (220V, 4A, 50/60Hz), (110V, 6.5A, 50/60Hz)- Max vacuum dgree : 20kpa / Max air flow : 1.30m3/min- 1st filter : medium filter 5~25㎛- 2nd filter : super bio filter (HEPA) 0.3㎛- Suction control : Touch panel- Clear hood & LED light : 5V / 1.2W※ Optional acc’y : Suction foot switch
Various Model
Optional Accessory
- Pocket filter- Casters - Flexible hose - Grinding box with connecting hose (GA-10L)
Premium Dust Collector
Your health is more important than your work. That's the reason why we customise this premium dust extractor for Austrian Dental Professionals.
Perfect Filteration System (ULPA)
Low Noise (Max. 55 dB)
Brushless Motor (Three times longer lifespan)
Invest on your health and work enviornment.
What's Special
HEPA (99.95% down to 0.3μm) + ULPA (99.9995% donw to 0.12μm) + Air/Noise Filter
Brushless Motor (Over 5,000 Continuous Hours = 208 Continuous Days)
Anti-Static Hose - 2.5m Long
Noise Level: MAX 55dB
Specification- Power supply : Single phase AC220V-240V, 50/60Hz- Motor RPM : 32,000RPM- Air pressure (Kpa) : 23.7Kpa (230V) / 25.2Kpa (120V)- Air flow (L/min): 3759 L/min (230V) / 3660 L/min (120V)- Body Materials : ABS, PP, PC- Output power : 1251W (230V) / 1247W (120V)- Current : 5.2A (230V) / 10A (120V)- Control panel: Suction level display, filter alarm, vacuum motor - Medical casters with stopper- Noise level : MAX 55dB- Suction level: 1-9 step- Motor operation temperature: 0-40 degree - Dimensions (bod): 295mm (W) x 330mm (D) x 485mm (H) (Height to the top of the device body)- This device can be linked with a micromotor controller.- Filter replacement (cleaning) alarm by the pneumatic sensor
Component- Main body- Anti-Static Hose 2.5meter- Power cable
Optional Accessory
- Casters - Flexible hose - 3 Point Angle Arm - Grinding box with connecting hose (GA-10L)

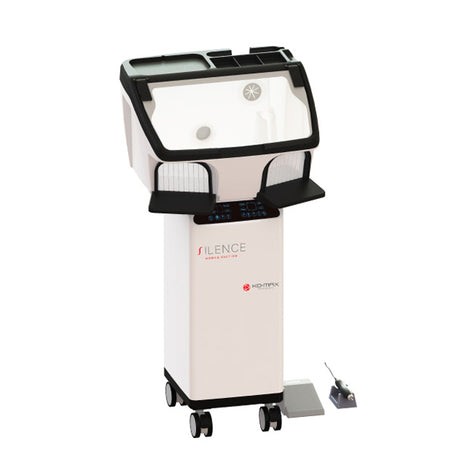

Premium Dust Collector
Your health is more important than your work. That's the reason why we customise this premium dust extractor for Austrian Dental Professionals.

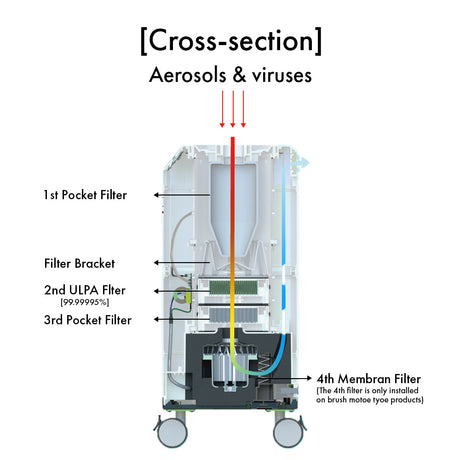

Perfect Filteration System (ULPA + Carbon)
Low Noise (Max. 55 dB)
Brushless Motor (Three times longer lifespan)
Invest on your health and work enviornment.
What's Special
HEPA (99.95% down to 0.3μm) + ULPA (99.9995% donw to 0.12μm) + Carbon + Air/Noise Filter
Brushless Motor (Over 5,000 Continuous Hours = 208 Continuous Days)
Anti-Static Hose - 2.5m Long
Noise Level: MAX 55dB
Specification- Power supply : Single phase AC220V-240V, 50/60Hz- Motor RPM : 32,000RPM- Air pressure (Kpa) : 23.7Kpa (230V) / 25.2Kpa (120V)- Air flow (L/min): 3759 L/min (230V) / 3660 L/min (120V)- Body Materials : ABS, PP, PC- Output power : 1251W (230V) / 1247W (120V)- Current : 5.2A (230V) / 10A (120V)- Control panel: Suction level display, filter alarm, vacuum motor - Medical casters with stopper- Noise level : MAX 55dB- Suction level: 1-9 step- Motor operation temperature: 0-40 degree - Dimensions (bod): 295mm (W) x 330mm (D) x 695mm (H) (Height to the top of the device body)- This device can be linked with a micromotor controller.- Filter replacement (cleaning) alarm by the pneumatic sensor
Component- Main body- Anti-Static Hose 2.5meter- Power cable
Optional Accessory
- Casters - Flexible hose - 3 Point Angle Arm - Grinding box with connecting hose (GA-10L)
This price is inclusive of GST.

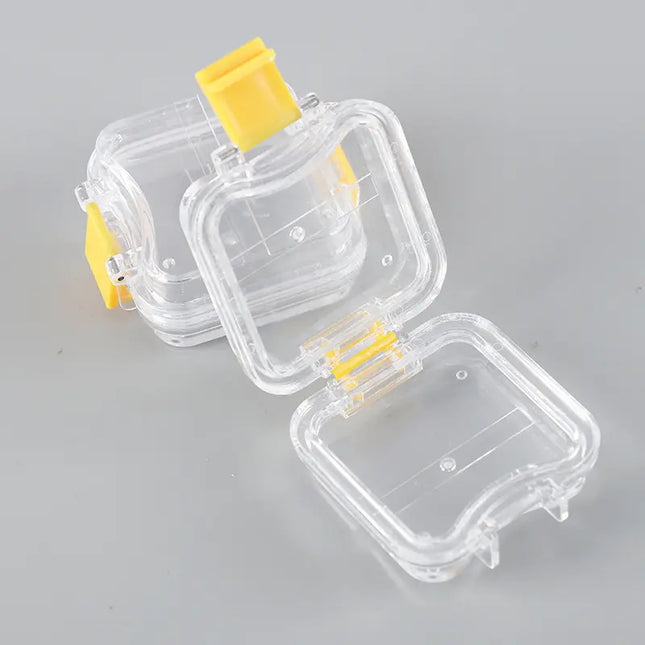

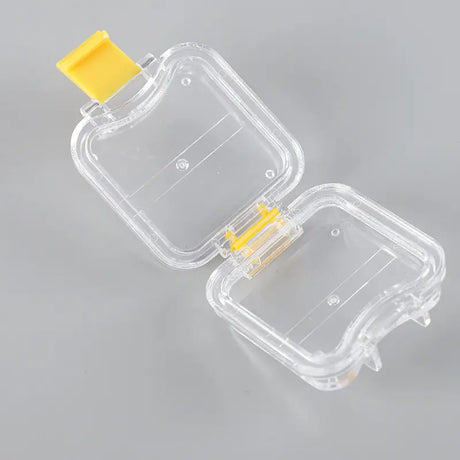

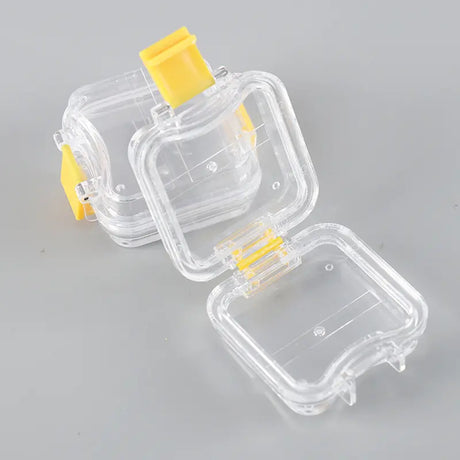

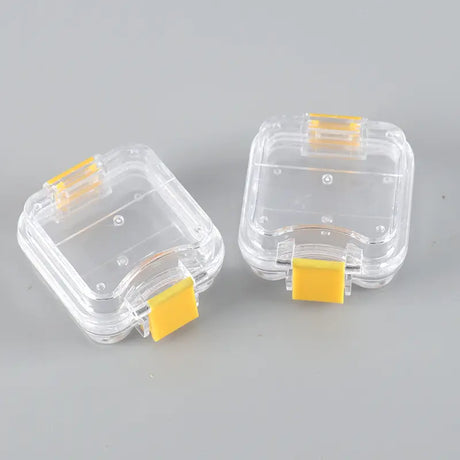

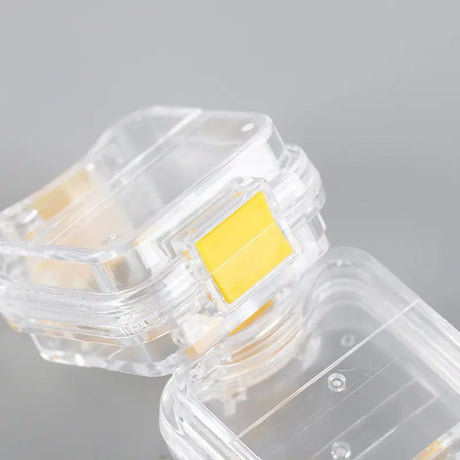

AUD 2.5+GST per one box
Material : PS Plastic

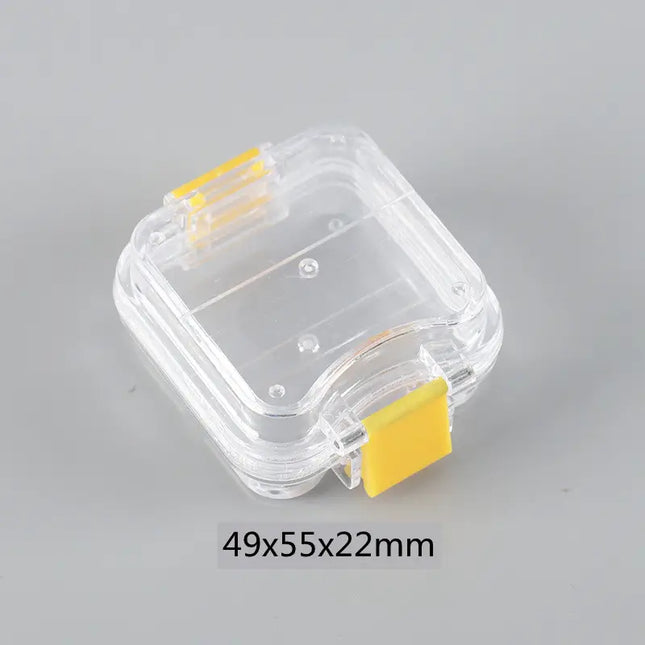

Size : 4.9 x 5.5 x 2.2 cm
Color : Transparent with yellow hinge
25 PCS Packing

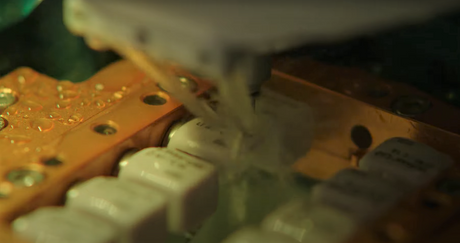

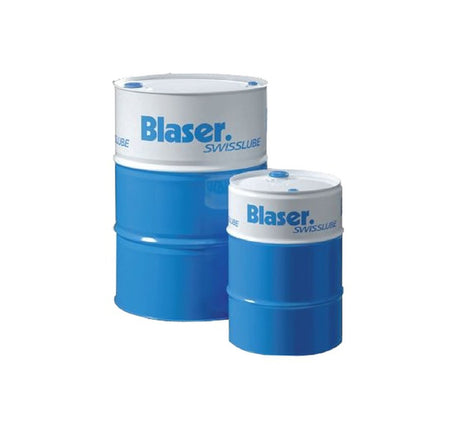

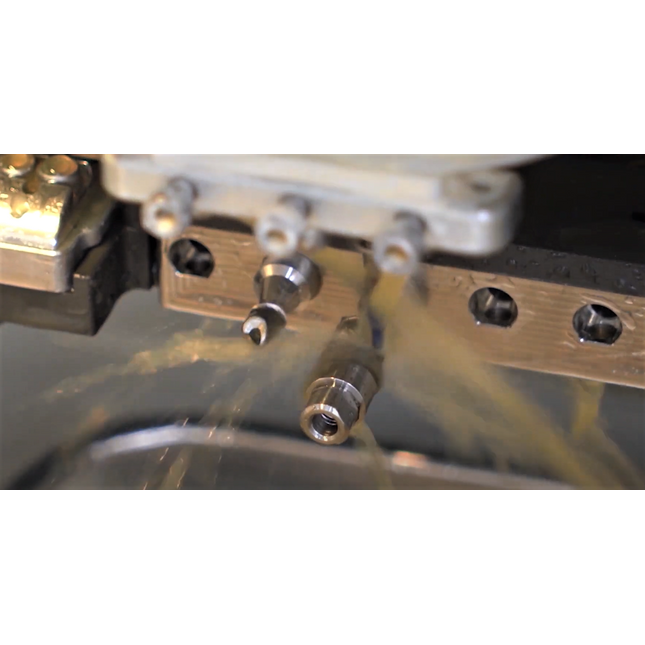

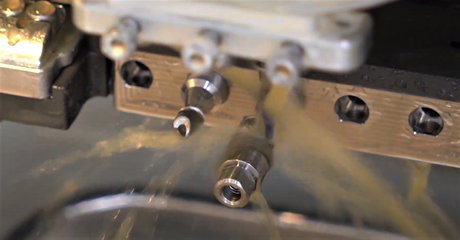

Premium cutting oil will increase the lifespan of tools and guarantee the milling quality.
Excellent surface quality and cleanliness
Boost your productivity and ensure a high surface quality with our crystal-clear, water-miscible and oil-free metalworking fluid Synergy 735!
Full-synthetic, water-miscible oil-free metalworking fluid
Spotless surfaces thanks to neutral pH - even with sensitive aluminium alloys
Suitable for precision cleaning due to outstanding rinse behaviour and easy cleanability
Extremely low foaming – ideal for high-pressure systems
Excellent tramp oil separation and filterability down to 1 micron
Free of critical substances such as bactericide, boron, chlorine, formaldehyde and sulfur* (*Without active addition of chlorinated EP additives)
Satisfied operators
Crystal clear coolant for a clear view of the machining process
Neutral odour and excellent skin compatibility
Performance in a variety of materials
Aluminium and titanium alloys
Steel and stainless steels
Composites (CFRP and others)
Designed for use in DI/RO or otherwise demineralized water
Pocket filter Bag for KOMAX Dust extractor (Silence series)The 5-layers increase the dust collection rate and eliminates static electricity by minimizing the vortex generated during dust collection.
Silence pocket filter (S) : 300mm for Komax CM-60 Premium Normal (H 48.5cm)
Silence pocket filter (L) : 450mm for Komax CM-60 Premium Tower (H 75cm)

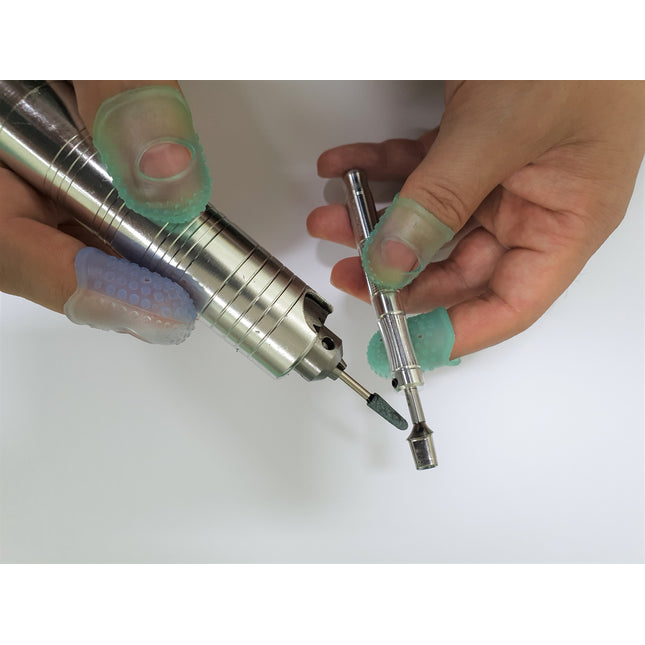

Zir-holder
Silicon holders on the tip to minimize slip, gass, and damage to the product.
Zir-Holder - Universal / Anterior / Posterior
It is designed to work well with good grip.
It prevents scratches and damage such as zirconia copping
Product includes ddtional silicon tube type holders for replacement

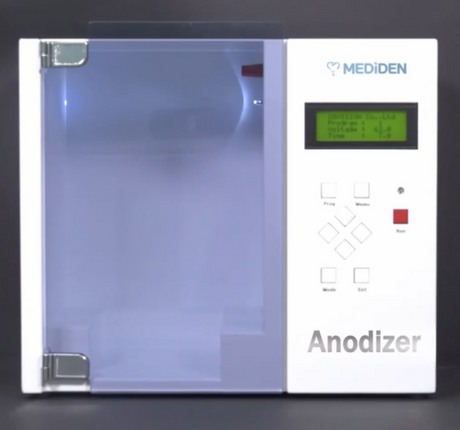

What is Anodizing?
Anodizing is a process of treating the surface of an aluminum to convert it to aluminum oxide. Anodizing machines make this process more efficient, while providing the most reliable finish.Advantage
Good wear resistance
Excellent corrosion resistance
Clear Color
No burning phenomenon
High uniformity film
Corrosion resistance is greatly improved
Colorization is possible
Less cracks
Specification
Manual Variable - Voltage, Intensity and Time
Data Save (up to 20) and Data Recall
Ovp / Ocp Protection
7 Single Jig Hole
Colour Chart of Voltage
How To Use (Single Jig)
1. Add provided solution into tray, 2. Put tray inside the machine with cover on. 3. Connect black cable to the center connector. 4. Connect other side of cable to the same color connector.
5. Choose a suitable jig for the abutment. Attach the abutment to the jig and fix it with a screw. 6. Remove the jig from the Mulit Jig Jack under the center of the tray cover and insert the red cable.7. Place the jig in the desired hole. (Check if the abutment is submerged in solution. Add more if not.)
8. Shut the door. Press RUN if you want to run Program : 1 straight away.9. If you want to change the program number, keep pressing PROGRAM until you see the number you desired, then press ENTER. Press RUN to start the work.10. LED light turns on and the power turns off automatically after 10 seconds.
