The First All-in-One Automated 3D Printer - Zylo3D

An All-In-One 3D Printer

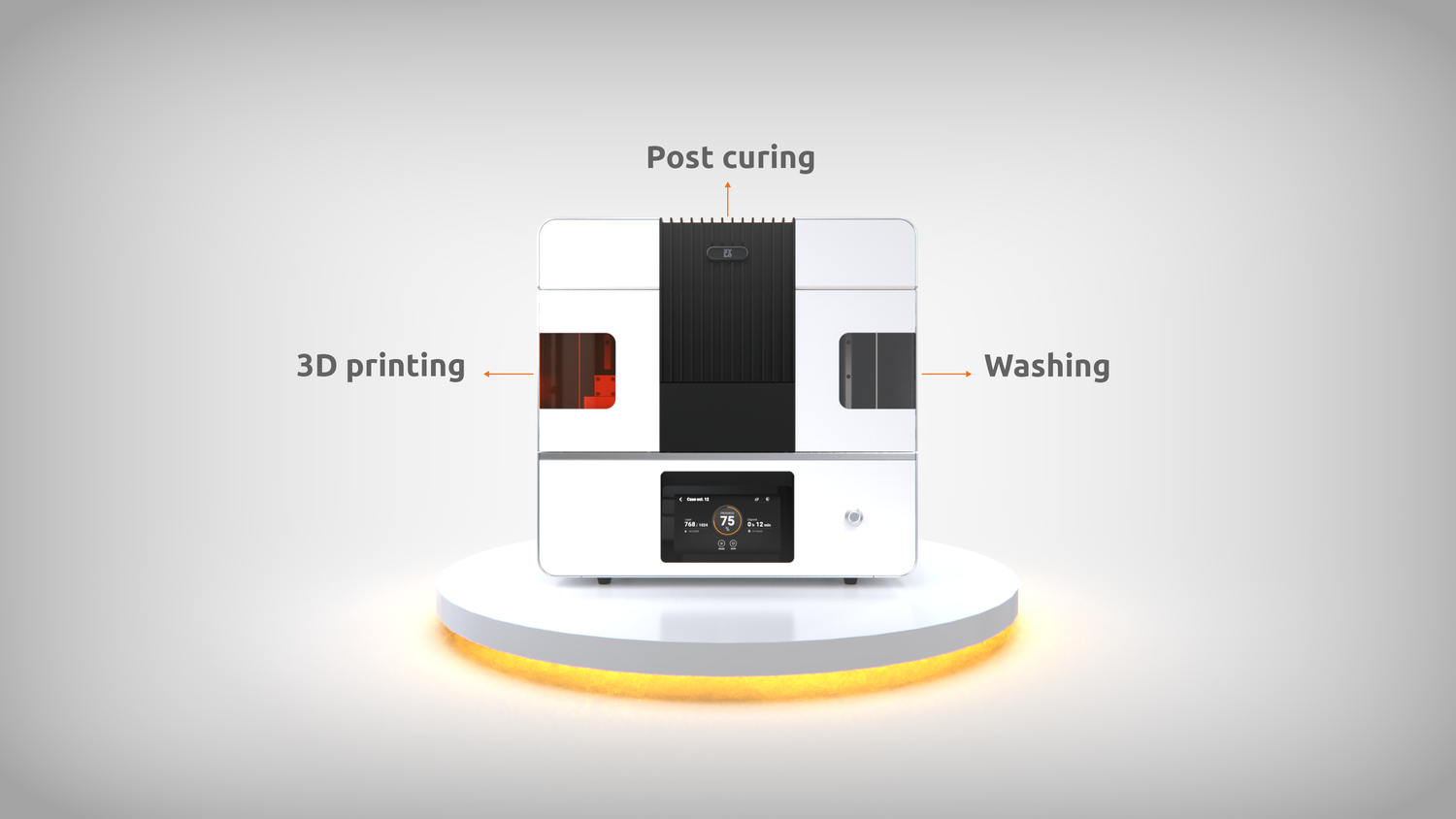

You can print, wash, dry, and cure all in a single synced machine that requires minimal space and no prior printing experience, while eliminating complexities associated with resin handling.

Chairside Fast Printing

We feel you! The hassle and the long process associated with printing can all be eliminated. Using Zylo3D, you can print within one visit creating a better patient experience and a more streamlined process.

Automation

Unlock automation with our integrated robotic 3D Printing system—reducing human intervention, boosting reliability, and ensuring user-friendly operation.

3D Printer

  • Industrial DLP optical engine
  • Adaptive speed - Real-time monitoring of LED light intensity with optical sensor
  • 3D dimensional accuracy of 47 um
  • Open system - Pac-Dent, Bego, Keystone and more

Washing

  • Proprietary washing system
  • Enhanced biocompatibility and mechanical strength that generates bubbles with diameter 100um

Curing

  • Multiple UV wavelength with heater

Specification - ZyloDent

  • Technology: Resin 3D Printer - DLP Type
  • Light Source: Digital Light Processing engine (Projector)
  • XY Resolution (50 um)
  • Layer Thickness (0.05) – (0.1) mm
  • Average Printing Speed 45mm / hr. on 100 um layer thickness
  • Resin Heating Automatic Resin Heating
  • Compatible File Format (STL)
  • Power Requirement 100-240 VAC: 50-60HZ
  • Printer Control Interactive 7” inch touchscreen
  • Connectivity LAN/Wi-Fi
  • Built-in Memory (30) GB
  • ZlyloDent Quick start guide 4
  • Printing Volume (125) x (70) x (100) mm
  • Printer Weight (50) kg

Specification - WASHING UNIT

  • Cleaning Method: Bubbles generator
  • Solvent: IPA 99%
  • Cleaning Tank Size: X: 160 mm, Y: 90 mm, Z: 100 mm

Specification - POST CURING UNIT

  • Curing UV Technology: LED
  • Wavelength: 405 nm
  • Curing Chamber Size: X: 165 mm, Y: 150 mm, Z: 85 mm
  • Number of LEDs: 30
  • LED Output Power: 3W
  • Irradiance per PCU side: 55 mW/cm2
  • Temperature Control: True

Specification - Others

  • Software: DentPrint [Zylo 3D CAM software]
  • User Interface: 7-inch touchscreen, PC interface with LAN and Wi-Fi connectivity

*Disclaimer: All specifications were tested in a laboratory and are subject to change without prior notice. For the latest update, please refer to Zylo 3D's official website.
