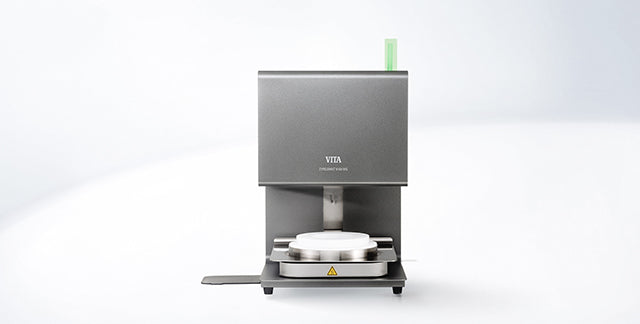

VITA ZYRCOMAT® 6100MS - Sinter Furnace (without vPad Controller) 40 mins Sinter

    Description

    VITA ZYRCOMAT® 6100 MS (40 min Sinter)

    VITA ZYRCOMAT 6100 MS delivers the quality and reliability that you have come to expect from VITA.

    The sintering furnace offers a choice of three sintering modes: HighSpeed, conventional and user-defined, giving you flexibility at all times. Optimized for use with VITA materials, as well as with all commercially available ZrO2 and Al2O3 ceramic dental framework materials, this high-temperature sintering furnace sets the pace in terms of user orientation and ergonomics.

    An LED light bar and freely-adjustable acoustic alerts, reliably provide information on firing progress even across longer distances. The ventilation system is cleverly designed so that rising heat is safely routed away from the electronics, ensuring long-term protection of the heating and electronic elements.

    Features/Benefits

    • Homogenous distribution of heat inside the sintering chamber
    • Fully automatic calibration with guaranteed temperature accuracy (VITA Autoadjust)
    • An extended service life and long-term energy-saving operation (VITA Energy Efficiency)
    • Gentle sintering of all conventional materials such as white and highly-translucent industrially and manually pre-colored zirconia in all operating modes for consistent and convincing firing results
    • HighSpeed sintering under 60 minutes (VITA HighSpeed)
    • HighSpeed sintering of bridge frameworks with up to 14 units
    • Sintering of all ceramic dental framework materials based on ZrO2 and Al2O3
    • Gentle, stress-free sintering in all modes through controlled cooling to 400°C
    • Integrated low-temperature pre-drying (VITA PreDry) with a seamless transition to the sintering program
    • Optional modular system upgrades for greater flexibility and cost-effectiveness
    • Sintering up to 80 units stacked in two levels

    Accessories (can be purchased separately):

    • FDS program (Firing Data System) - PC software for administrating and archiving firing data
    • 1 Switchbox (Prod. No. D65000) is required for multiple-furnace control with one VITA vPad control unit. The switchbox is suitable for connecting up to 4 furnaces
    • Side panels in three different colors for customizing the VITA ZYRCOMAT 6100 MS
    • Set of numbers (No. 1-4)

      Technical data

      • Width: 315 mm
      • Depth: 500 mm
      • Height: 470 mm
      • Weight: 27 kg (painted)
      • Casing: painted anthracite finish
      • Chamber diameter : 90 mm
      • Chamber height: 70 mm
      • Firing temp.: max. 1600°C
      • Power supply: 230 volt AC, 50 Hz
      • Power consumption: max. 1.5 kW
      • Classification: Protection class 1

      In order to operate the furnace, you will need the VITA vPad excellence control unit.
