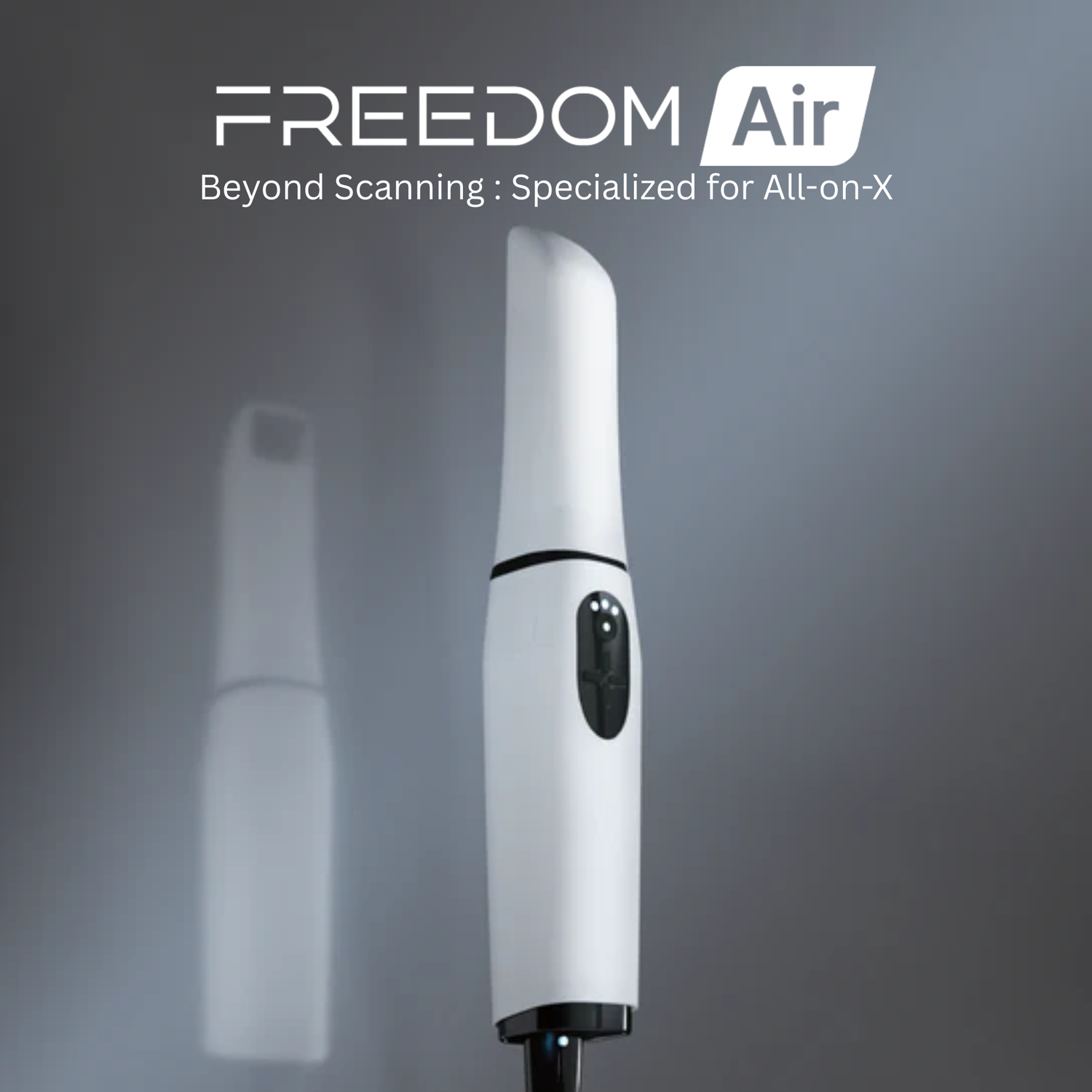

DOF Freedom Air

Beyond Scanning : Specialized for All-on-X

Precision Meets Innovation

A Game Changer : Beyond Scan

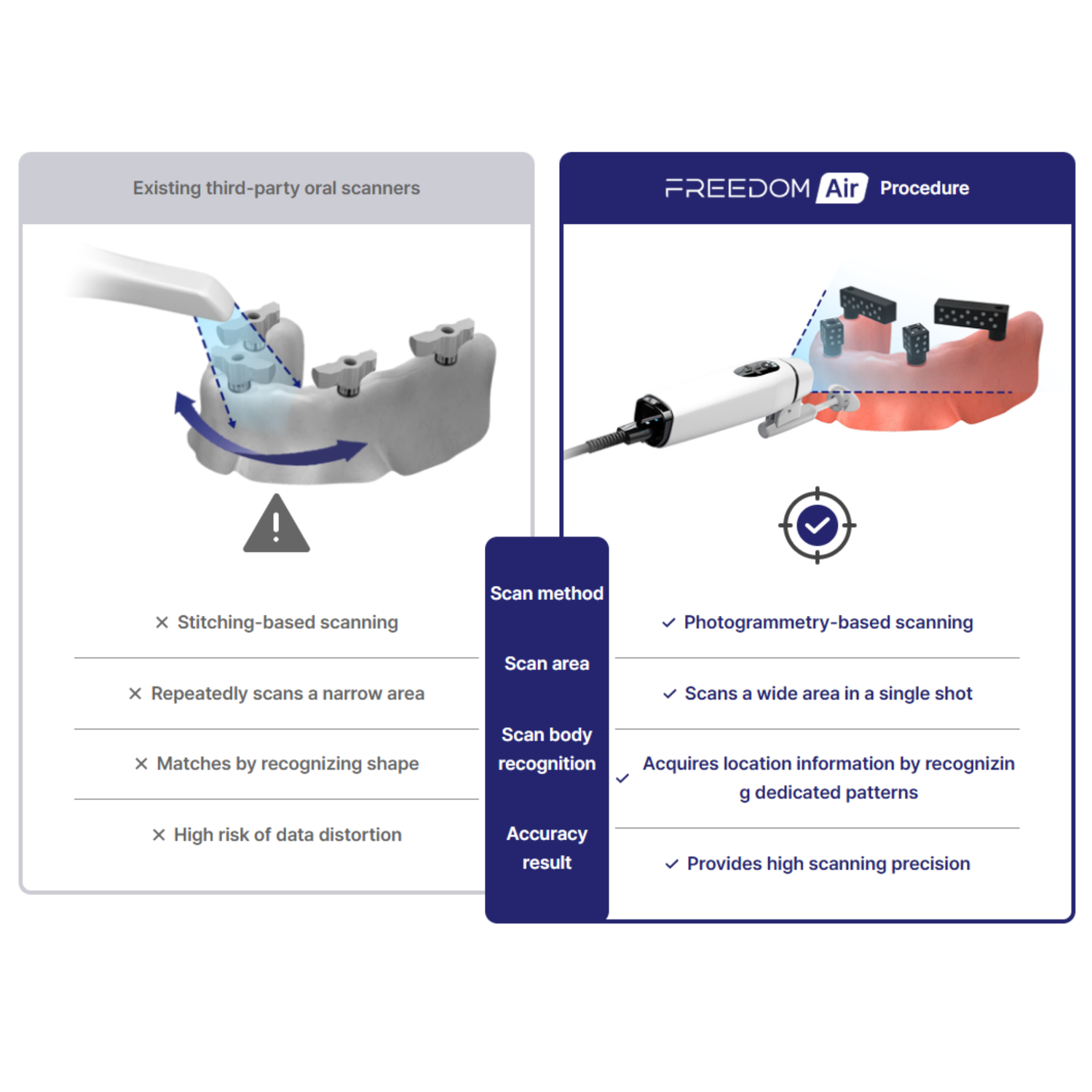

PIM (Precise Implant Measurement), developed with DOF’s proprietary technology, uses a dedicated PIM guide with an extended lighting lens. Designed to expand the scanning area and capture multiple scan bodies outside the mouth simultaneously. By scanning a wide area at once and recognizing scan body positions without stitching, it provides precise implant positioning. DOF’s high-precision scanning solution optimized for All-on-X cases.

Scan Method	Photogrammetry-based scanning
Scan Area	Scans a wide area in a single shot
Scan Body Recognition	Acquires location information by recognizing dedicated patterns
Accuracy Result	Provides high scanning precision

Procedure


Large Scan Area With a wide scanning area of 18.5 * 15mm and a deep depth of field of 25mm, it enables fast and precise acquisition of data.	Voice Memo Memos can be recorded using the voice recognition feature, with automatic summaries provided by AI

LED Light The scanner's status and cable connection can be intuitively checked through the LED light indicator	DOF SYNC DOF SYNC: Designed for user convenience, DOF SYNC enables the fast and seamless transmission of scan data to partners

Lightweight It weighs only 145g, making it the lightest intraoral scanner currently available on the market. Additionally, it significantly reduces wrist fatigue during scanning, enhancing user comfort	D-PAD Control The scanner is equipped with a D-pad Control, Enabling fast and hygienic operation


30mm Deep scan depth	Accurate occlusion scan	Smart scan filter

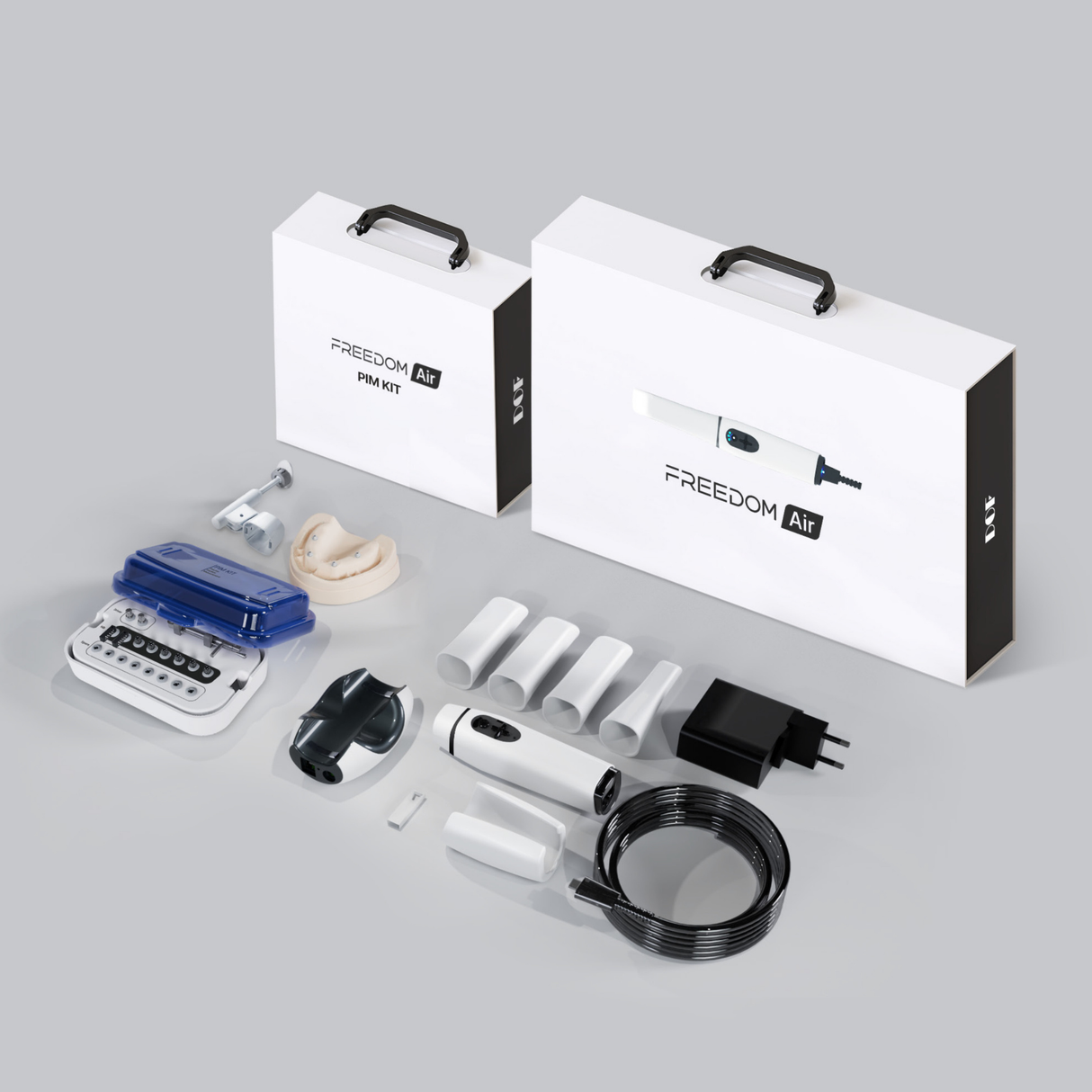

Components

Product components

1. FREEDOM Air
2. Normal Tip
3. Small Tip
4. Table Holder
5. Wall Holder
6. Cleaning Cotton
7. Thumb Drive
8. C to Cable
9. A to B Cable

PIM KIT components

1. PIM KIT
2. PIM Guide Tool
3. All-on-X Practice Model

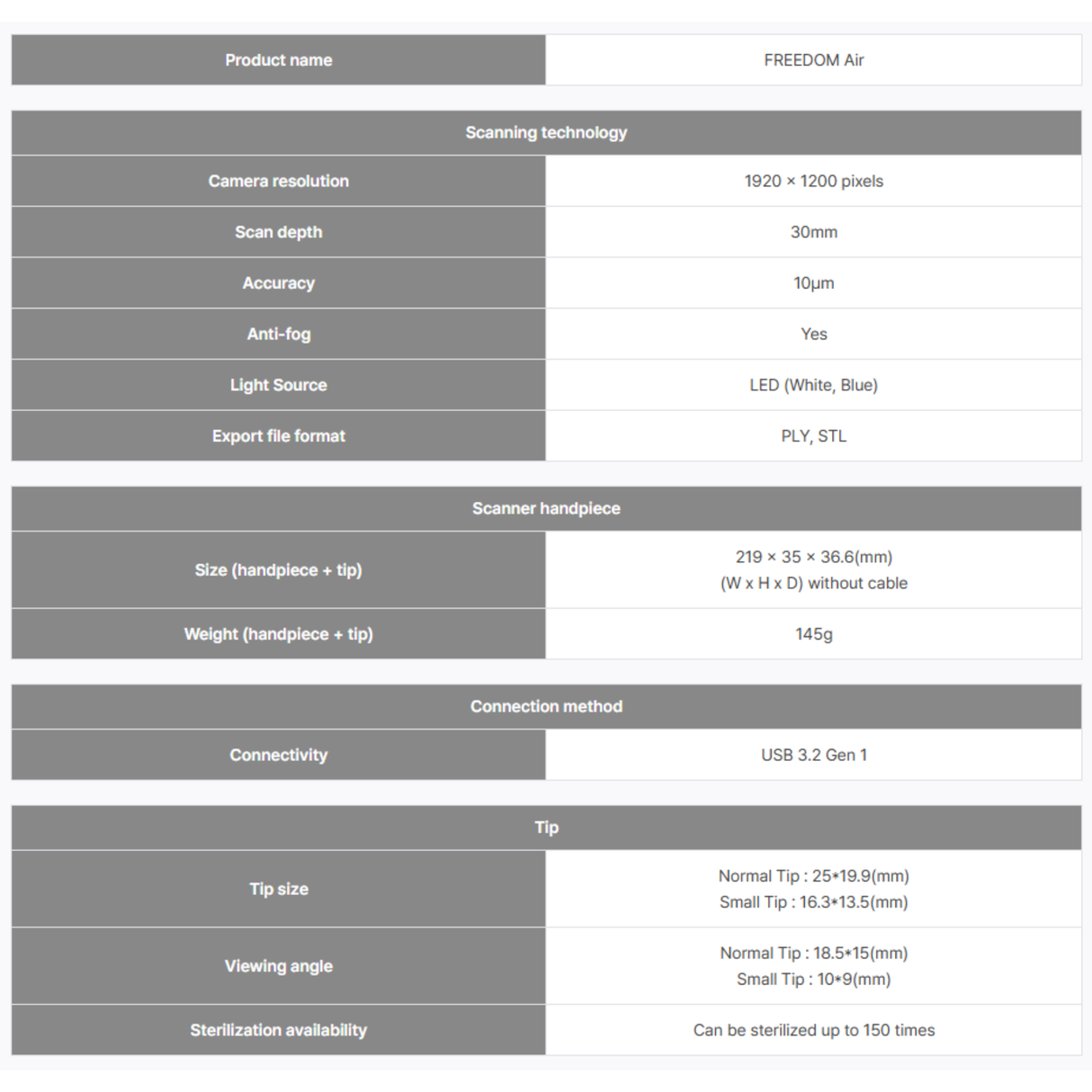

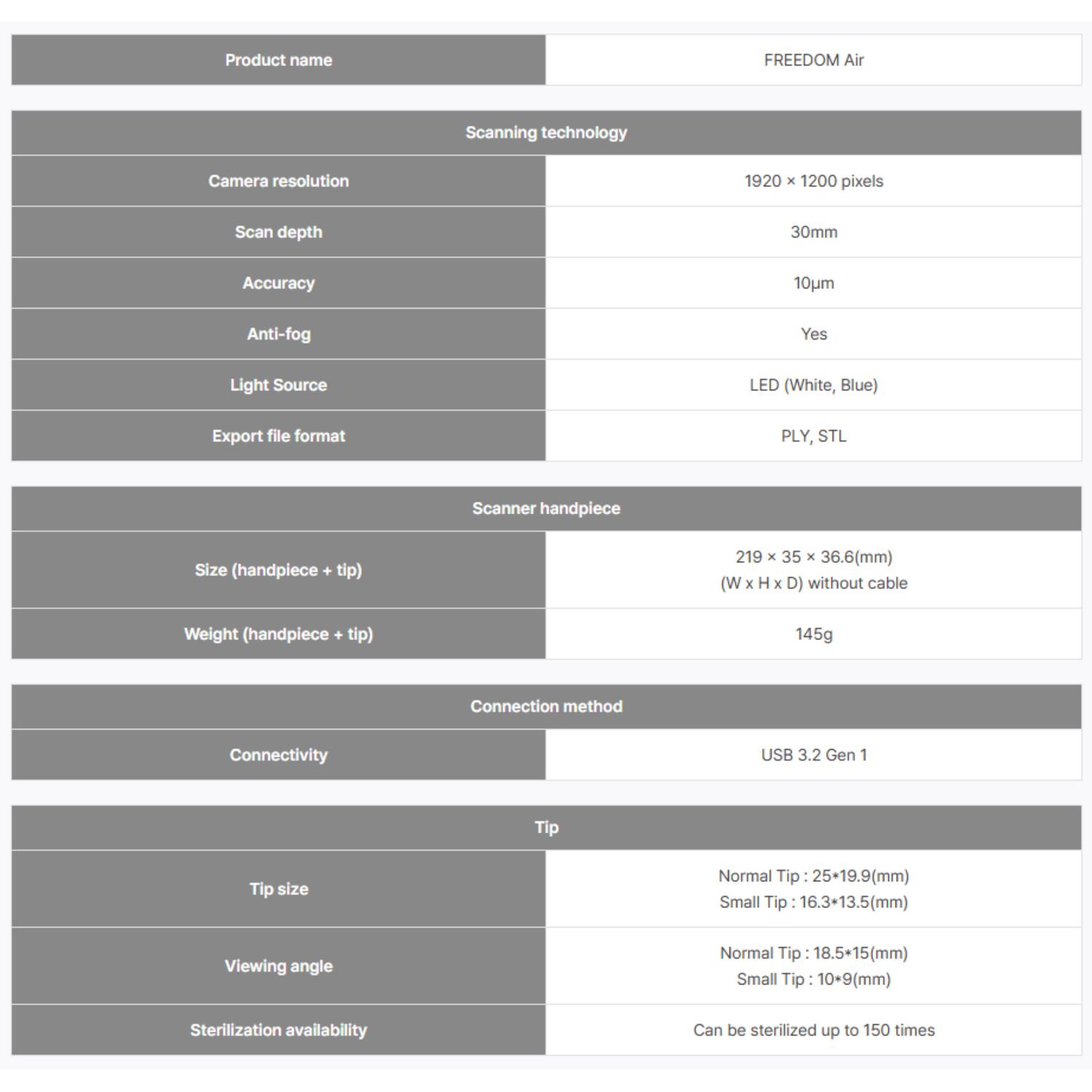

Technical specifications

Scanning technology
Camera resolution	1920 × 1200 pixels
Scan depth	30mm
Accuracy	10µm
Anti-fog	Yes
Light Source	LED (White, Blue)
Export file format	PLY, STL
edit
Scanner handpiece
Size (handpiece + tip)	219 × 35 × 36.6(mm) (W × H × D) without cable
Weight (handpiece + tip)	145g
edit
Connection method
Connectivity	USB 3.2 Gen 1
edit
Tip
Tip size	Normal Tip : 25×19.9(mm) Small Tip : 16.3×13.5(mm)
Viewing angle	Normal Tip : 18.5×15(mm) Small Tip : 10×9(mm)
Sterilization availability	Can be sterilized up to 150 times
