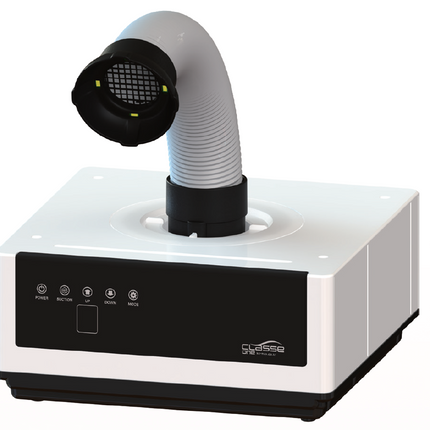

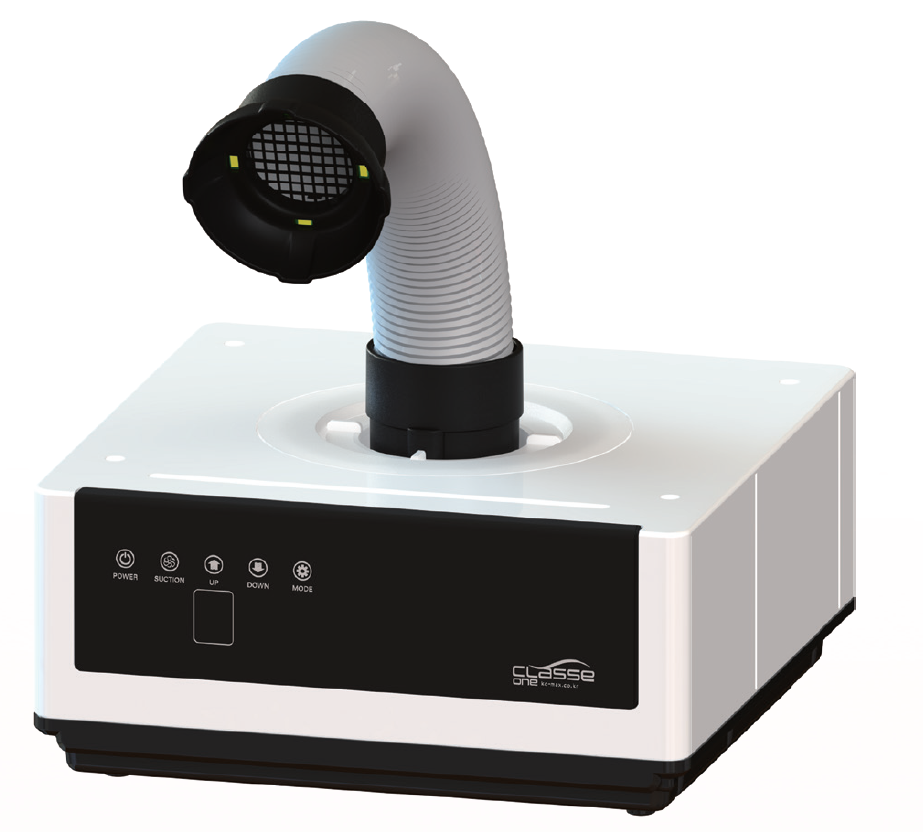

C-100-H / Komax Classe One Desktop Dust Collector

This model has a flexible hose (Length 700mm) with LED light.

Dust Collector for CAM systems

Control the suction through the touch pad. Suction operation by receiving signals from various CAM equipment.
The status of this device is output as a contact signal.
The suction performance is fixed and cannot be changed.

Specification
- Dimensions : 280mm x 280mm x 126mm(W x D x H)
- Body material : plastic
- In put power : (220V, 4A, 50/60Hz), (110V, 6.5A, 50/60Hz)
- Max vacuum dgree : 20kpa / Max air flow : 1.30m3/min
- 1st filter : medium filter 5~25㎛
- 2nd filter : super bio filter (HEPA) 0.3㎛
- Suction control : Touch panel
- Clear hood & LED light : 5V / 1.2W
※ Optional acc’y : Suction foot switch

Various Model


Optional Accessory

- Pocket filter
- Casters
- Flexible hose
- Grinding box with connecting hose (GA-10L)
