Description
|
CRAFT PLUS |
CRAFT PRO |
|
The Evolution of All-in-One Mill |
A New Paradigm in All-on-X Metal Milling |
| DRY | WET |
≈ 💧
|
≈ 💧
|
| Motor |
Servo
|
Full Servo + Linear Scale
|
| A/B axis |
A:360°, B:±35° |
A:360°, B:±35° |
| Spindle |
SycoTec (Type) |
SycoTec (Type) |
| 1.37kW (Power) |
3.6kW (Power) |
| 60,000RPM (Speed) |
60,000RPM (Speed) |
| No. of Tool pocket |
● ● ● 21ea |
● ● ● ● ● 40ea |
| Jig replacement method |
Screw |
Screw |
| MOTIONAPP
|
3.0
|
3.0
|
| MATERIAL COMPATIBILITY |
| Zir, H/C |
✔ |
✔ |
| PMMA, Wax |
✔ |
✔ |
| G/C, Pre-milled |
✔ |
✔ |

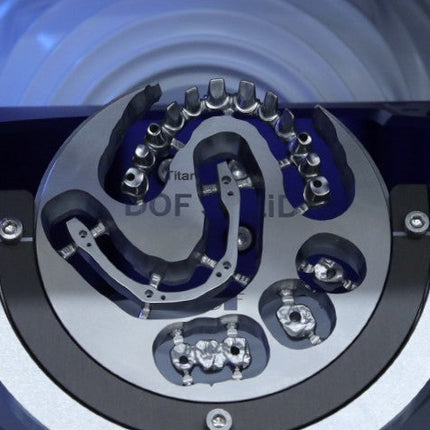

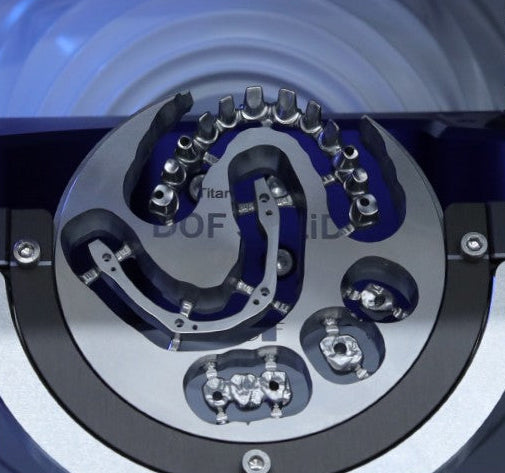

| Titanium Disk |
✔
|
✔ |
| Co-Cr Disk |
|
✔
|

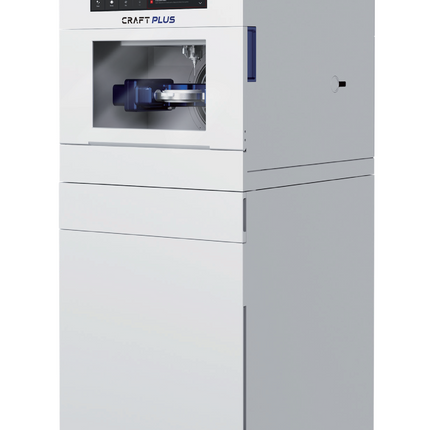

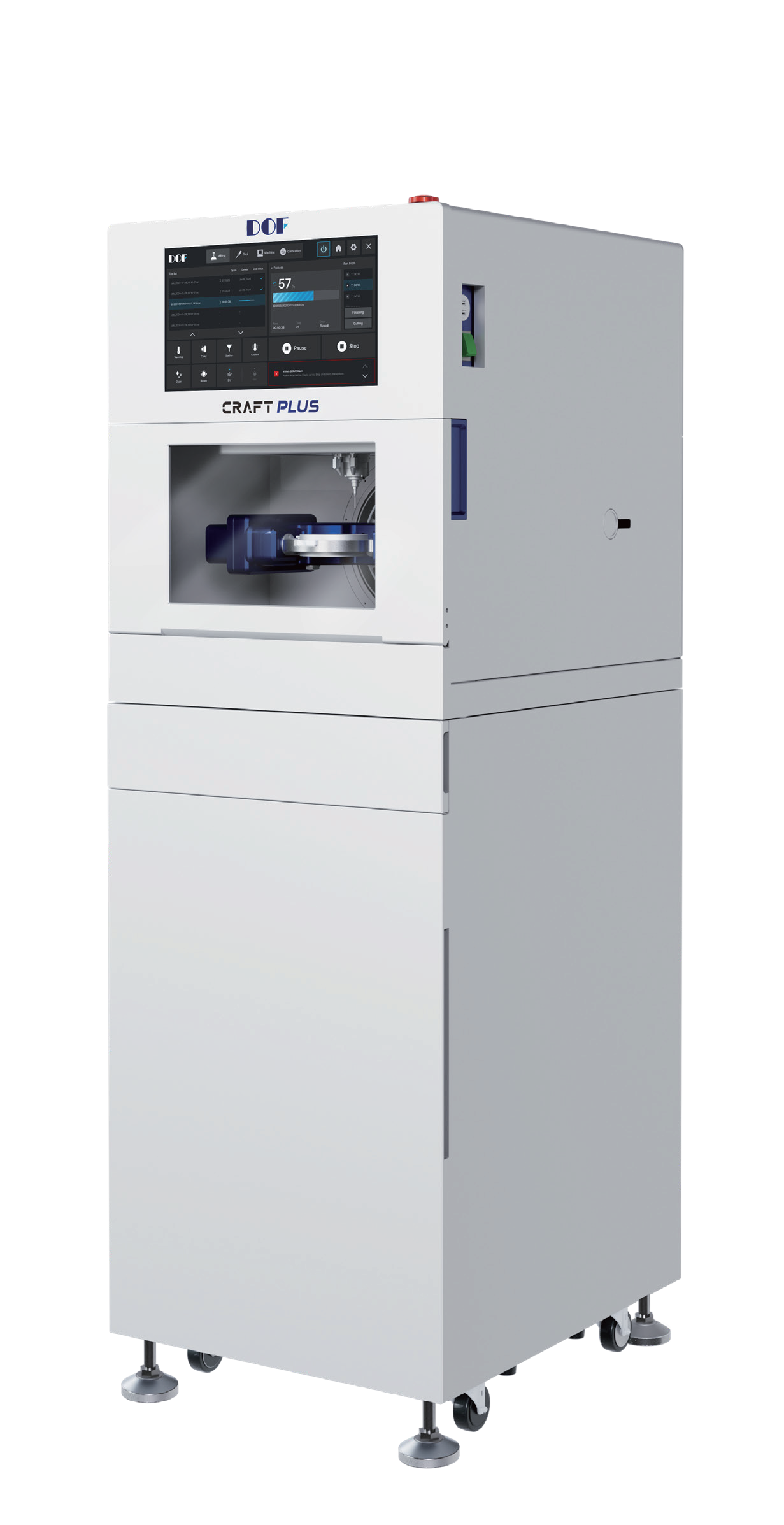

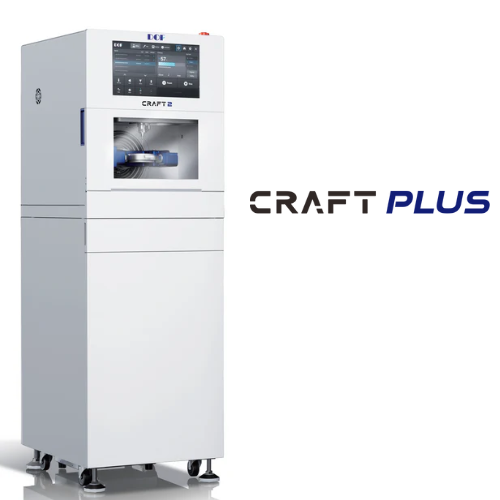

DOF CRAFT Plus - All-in-One TO Metal
From All-in-One to Metal
An all-in-one system integrating every piece of equipment required for milling, now empowered with a high-performance spindle. From titanium disks to zirconia, it completes smooth and precise milling without material limitations.
Technology that goes beyond boundaries. A design that combines spatial efficiency and workflow optimization. At the moment your familiar workflow feels brand new, CRAFT PLUS is there.
 |
 |
 |
| Equipped with a servo motor |
35° Milling on the B-axis Without Angle Limitation |
15-inch Large Screen |
The CRAFT Series Overcomes Angular Limitations
With a C-type clamp, CRAFT PLUS perform 90° milling by positioning the block vertically, allowing precise milling of the outer surfaces of teeth. Thanks to the open structure of the C-type clamp, when the block is placed at 90°, tools can access undercut areas unreachable at 0° or 180°, achieving more delicate details.
New Possibilities with 35° Milling, Opened by CRAFT.
The CRAFT PLUS rotates the B-axis up to 35°, enabling precise results in deep undercuts and full-arch prosthetics without angle restrictions. A high-performance servo motor and rigid monoblock frame guarantee vibration-free accuracy at any angle, allowing even large prosthetics to be milled precisely from thinner zirconia blocks.
A Completely New Way of Producing Abutments
Traditional methods for custom abutments involve designing, milling, and rescanning in multiple steps. With one-step milling, both the custom abutment and the superstructure are manufactured simultaneously, drastically reducing the workflow. For example, while zirconia bridges are being sintered, abutments can be milled — saving over a full day of work. This also eliminates scanning errors, enhancing accuracy of the final result.
Smart Connectivity Anytime, Anywhere
Check everything from machine status to milling progress in real time, anytime and anywhere. Keep your workspace in your hand with the mobile-only Motion App, With the DOF Sync App for PC, you can manage schedules, processing history, and status notifications all in one place. Start faster and more efficiently with a seamless, smart workflow.
More than just an upgrade - All-new! Motion App
 |
 |
 |
|
Tool life at a glance
|
Customized control optimized for workflow
|
Smart control system that anyone can operate easily
|
|
The intuitive UI lets you grasp each tool’s life and position at a glance,
Tools are clearly displayed and systematically organized, enabling an efficient working environment.
|
From tool selection to milling sequence and starting point — everything can be freely set according to your needs. Interrupted tasks can be easily resumed, with real-time monitoring of progress and status.
|
From axis movement to start-point setup, everything is visualized for intuitive
control. Real-time monitoring of machine status ensures efficient and reliable operation.
|
Features
|
 |
| AC Servo Motor |
Wet & Dry Compatible Milling |
 |
 |
| 5-Axis Simultaneous Processing |
Sturdy & Low-Vibration |
 |
 |
| Larger Screen, Smarter Control |
High Quality Spindle |
 |
 |
| 21 Station Automatic Tool Changer |
Storage |

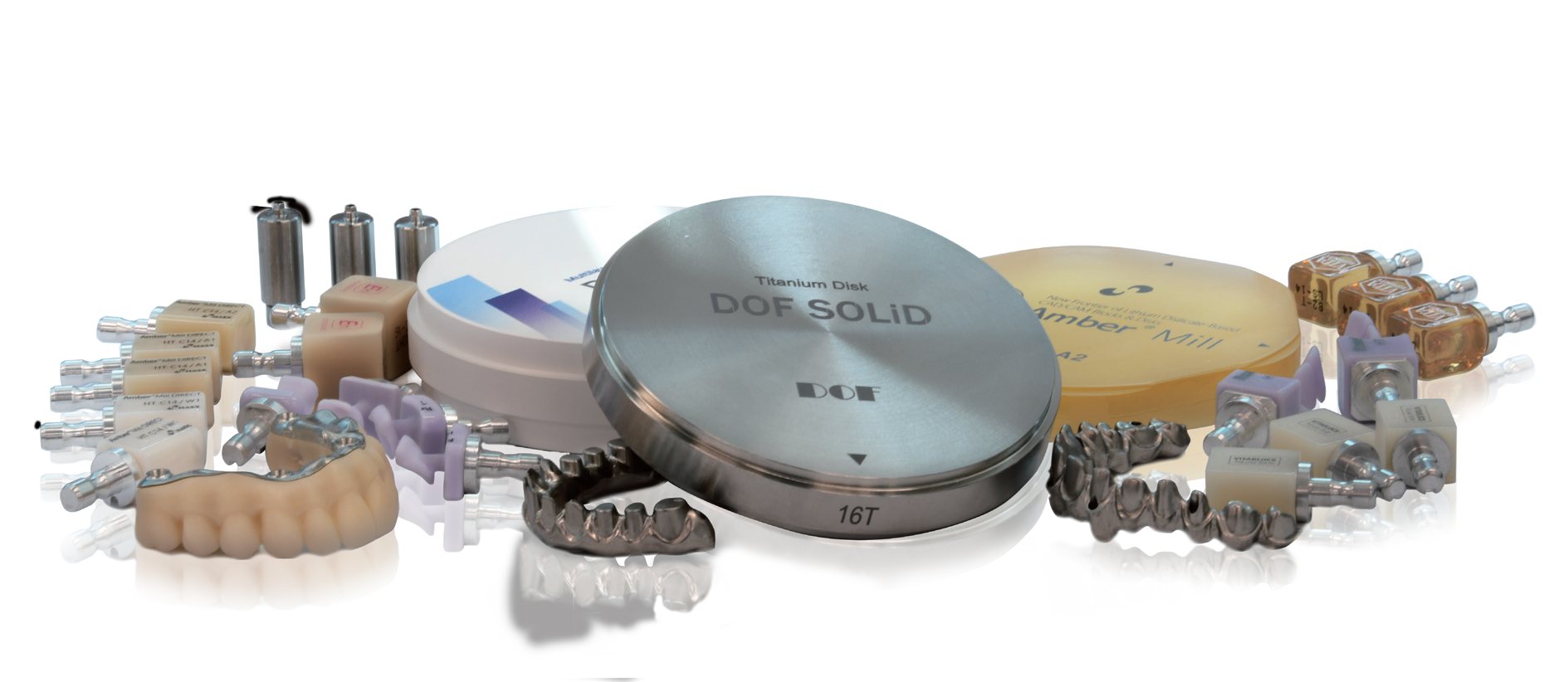

Materials & Indications
|
Coping / Crown |
Bridge |
Inlay/Onlay |
Veneer |
Over Structure |
Abutment |
| G/C, H/C |
✓ |
✓ |
✓ |
✓ |
|
|
| Zir, PMMA, Wax |
✓ |
✓ |
✓ |
✓ |
✓ |
|
| Pre-milled |
|
|
|
|
|
✓ |
| Ti-DISK |
✓ |
✓ |
|
|
✓ |
✓ |
Optional Jig
 |
 |
 |
 |
| Premill Original Jig |
Premill Reverse Jig |
Glass Ceramic Jig |
Hybrid Ceramic Jig |
 |
 |
 |
 |
| Hybrid Ceramic Jig (8T, 10T) |
C-Hexa Type Jig (8T, 10T)![]()
|
Non-Hex Jig |
Inlay Holder |
 |
|
|
|
| Metal C Type Jig |
|
|
|
Specification
| Feature |
Motor |
AC Servo Motor |
| Spindle power |
Max. 1.37kW / 60,000RPM
|
| Number of tool ports |
21ea |
| Network connection |
Wired LAN + Wi-Fi (Mobile Motion App / DOF Sync) |
| Wet & dry milling |
Dry & wet milling |
| Maximum tilt angle |
A-axis ±360° / B-axis ±35° |
| Operating environment |
15.6-inch display with Motion App 3.0 |
| All-in-one |

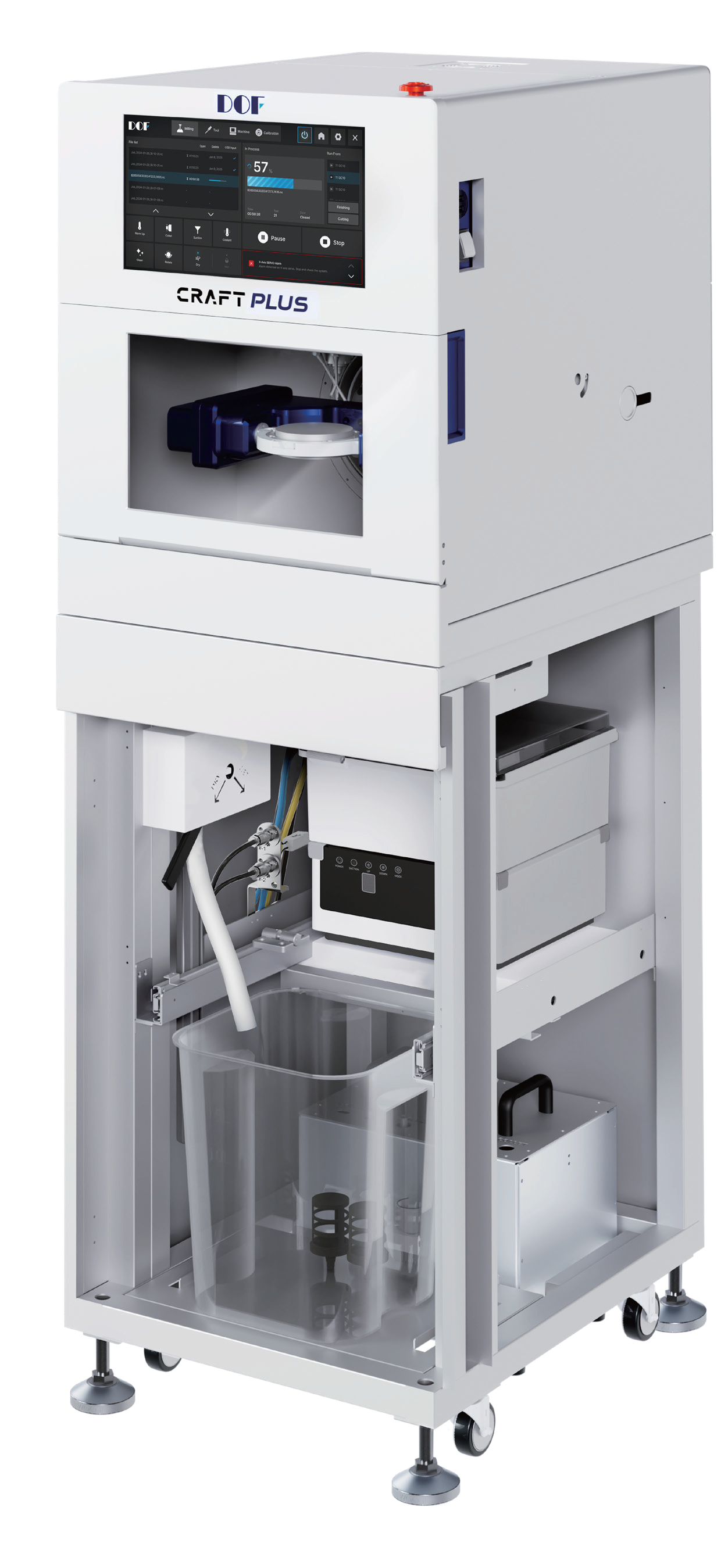

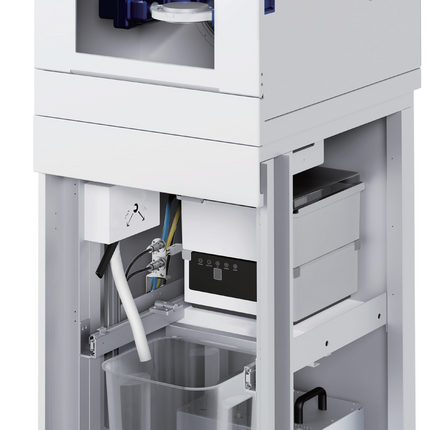

All-in-one milling machine including compressor, water pump, and dust collector |
| Dimensions(W*D*H) |
Machine 545 x 670 x 670mm
Table 545 x 670 x 970mm |
| Weight |
Total 145kg |
| CAM Software |
hyperDENT, Millbox |
| Power consumption |
220V 16A |
